MDE MACHINERY SX1400SAW/SX WORM DRIVE ROTATION/SX1400MOUNT

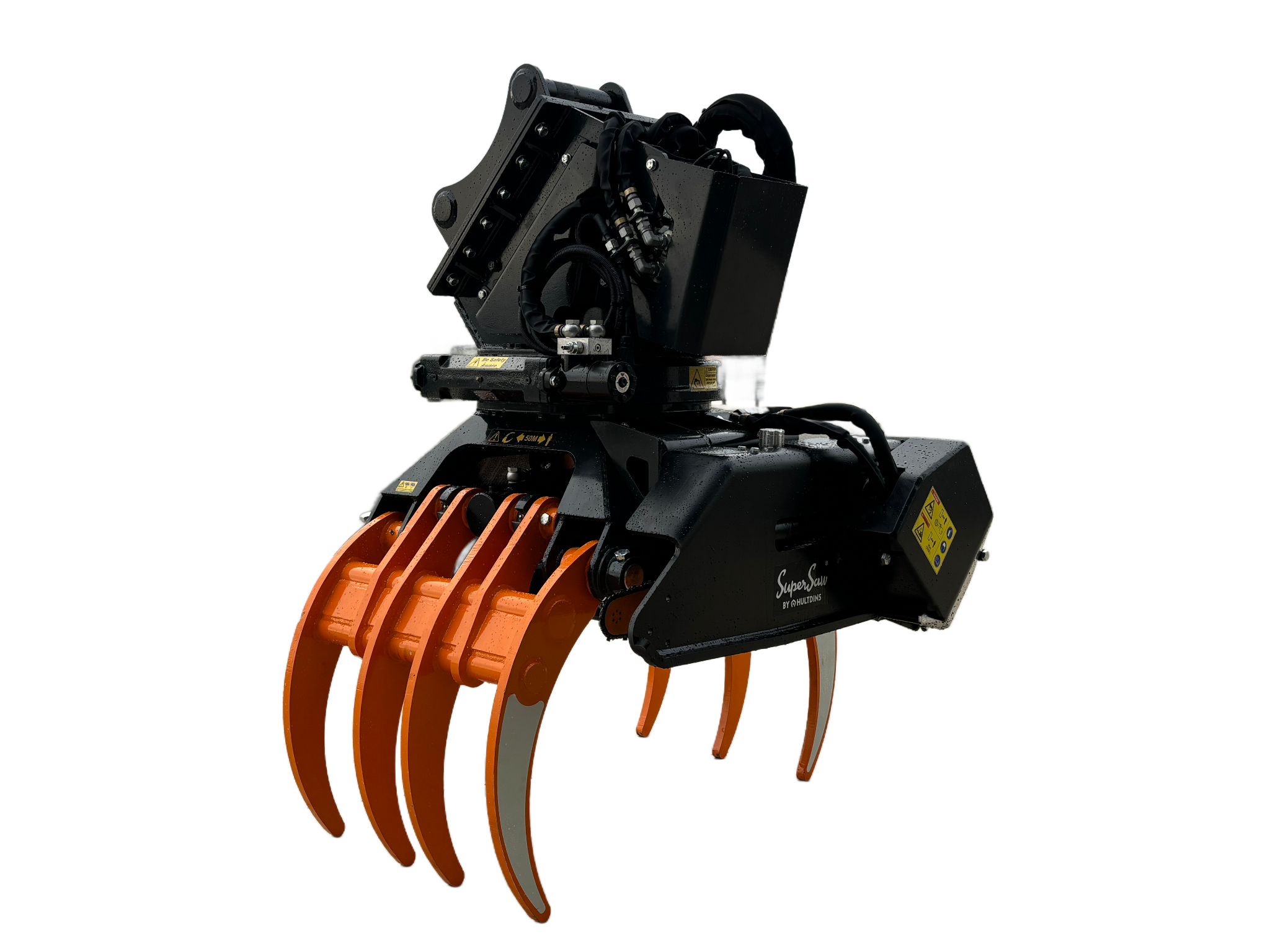

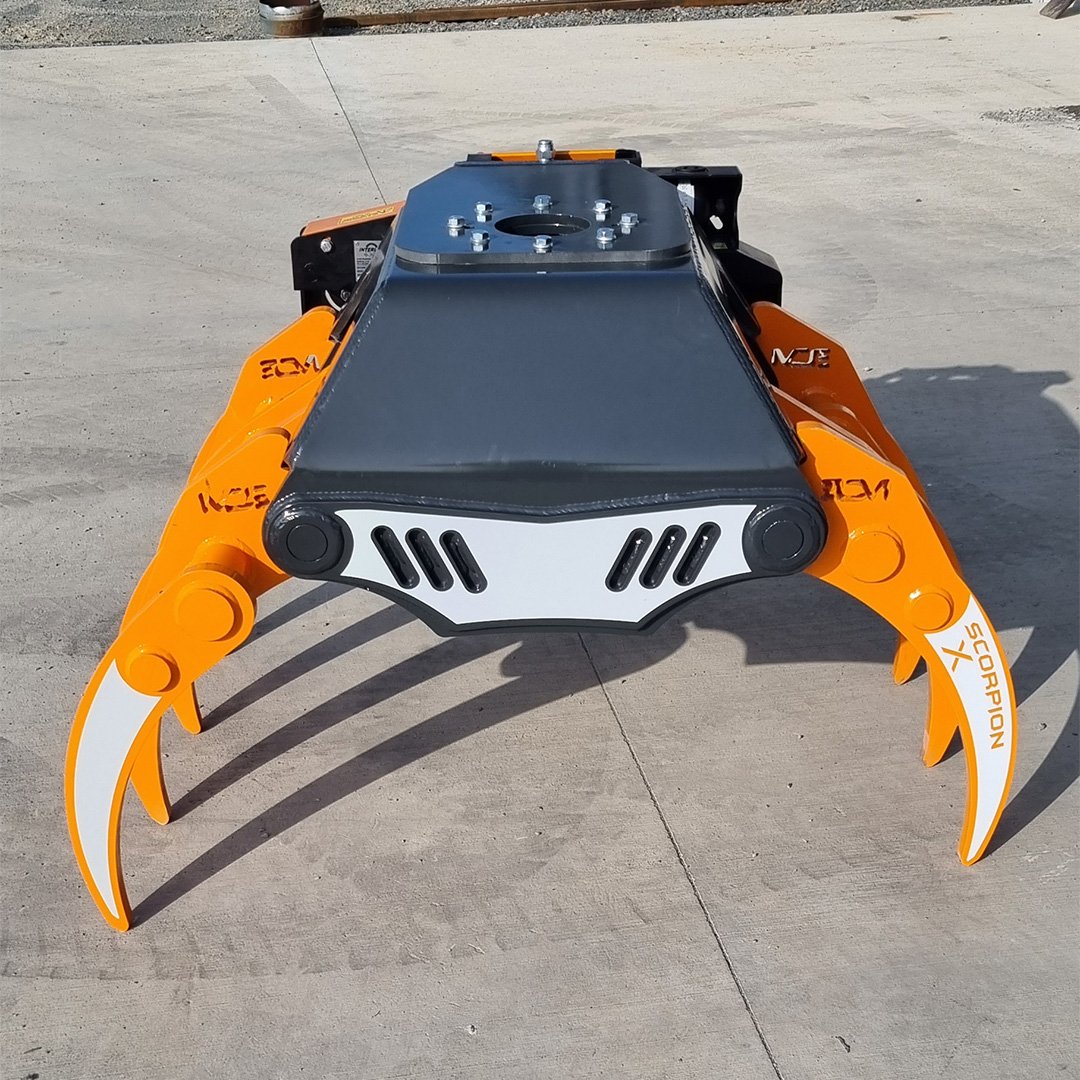

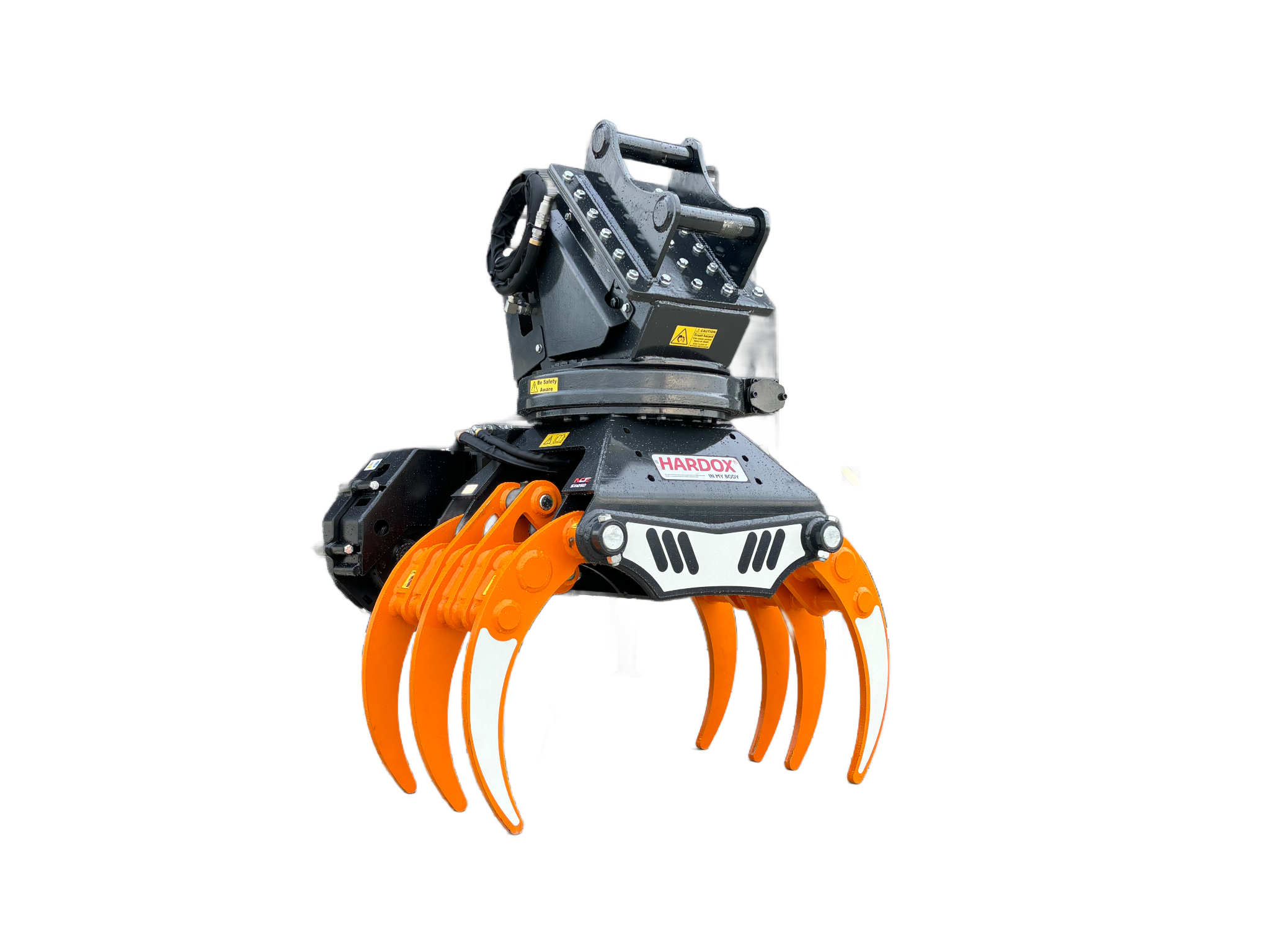

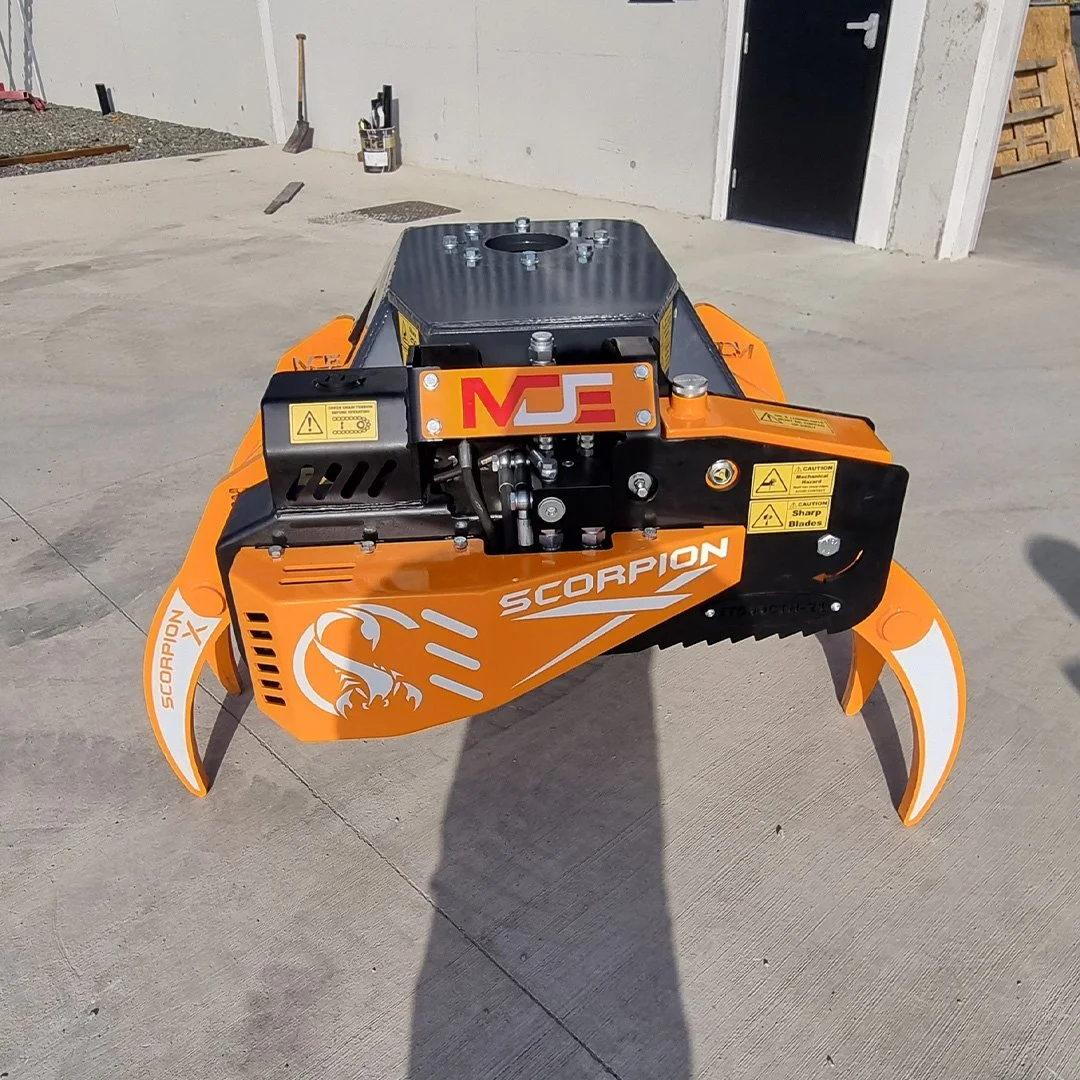

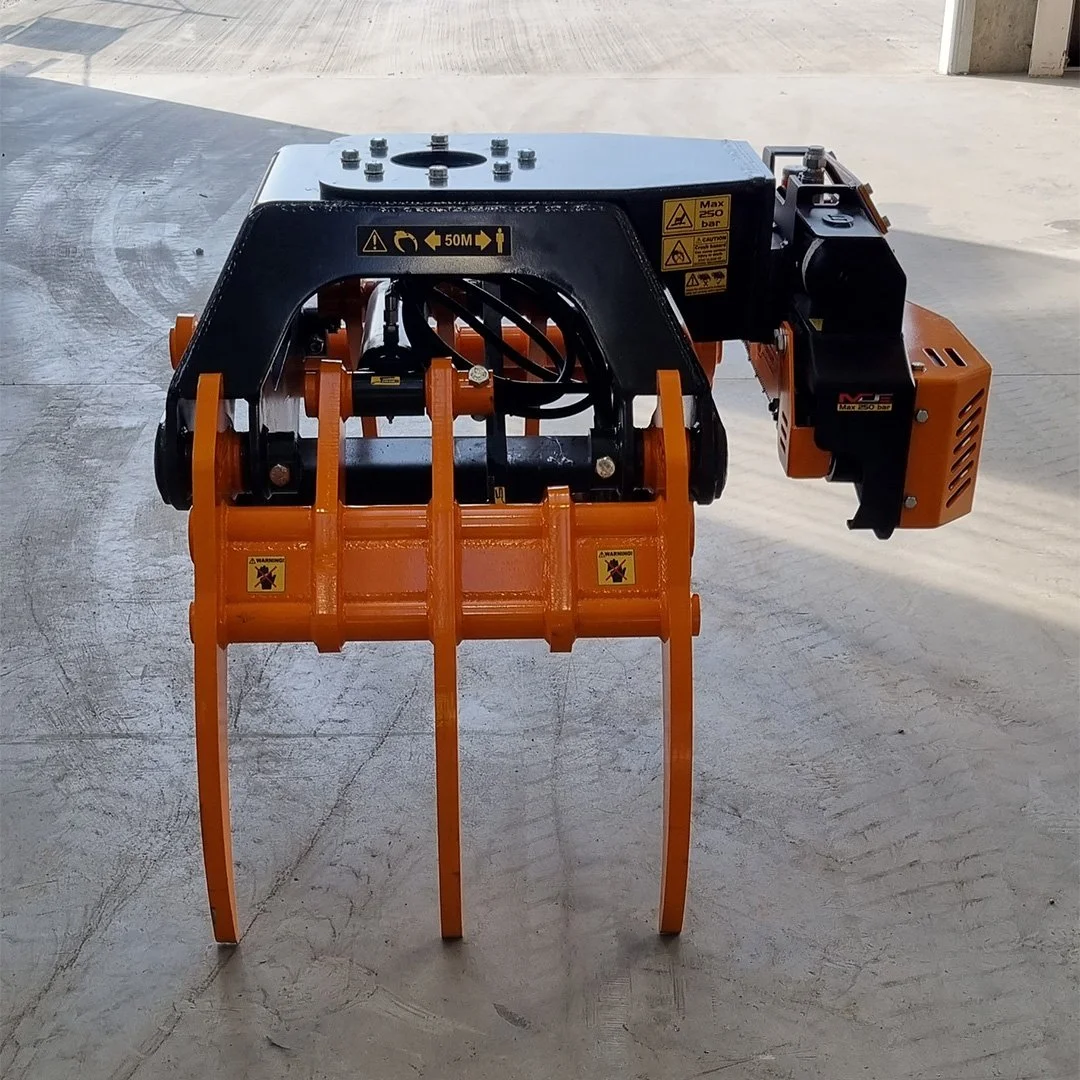

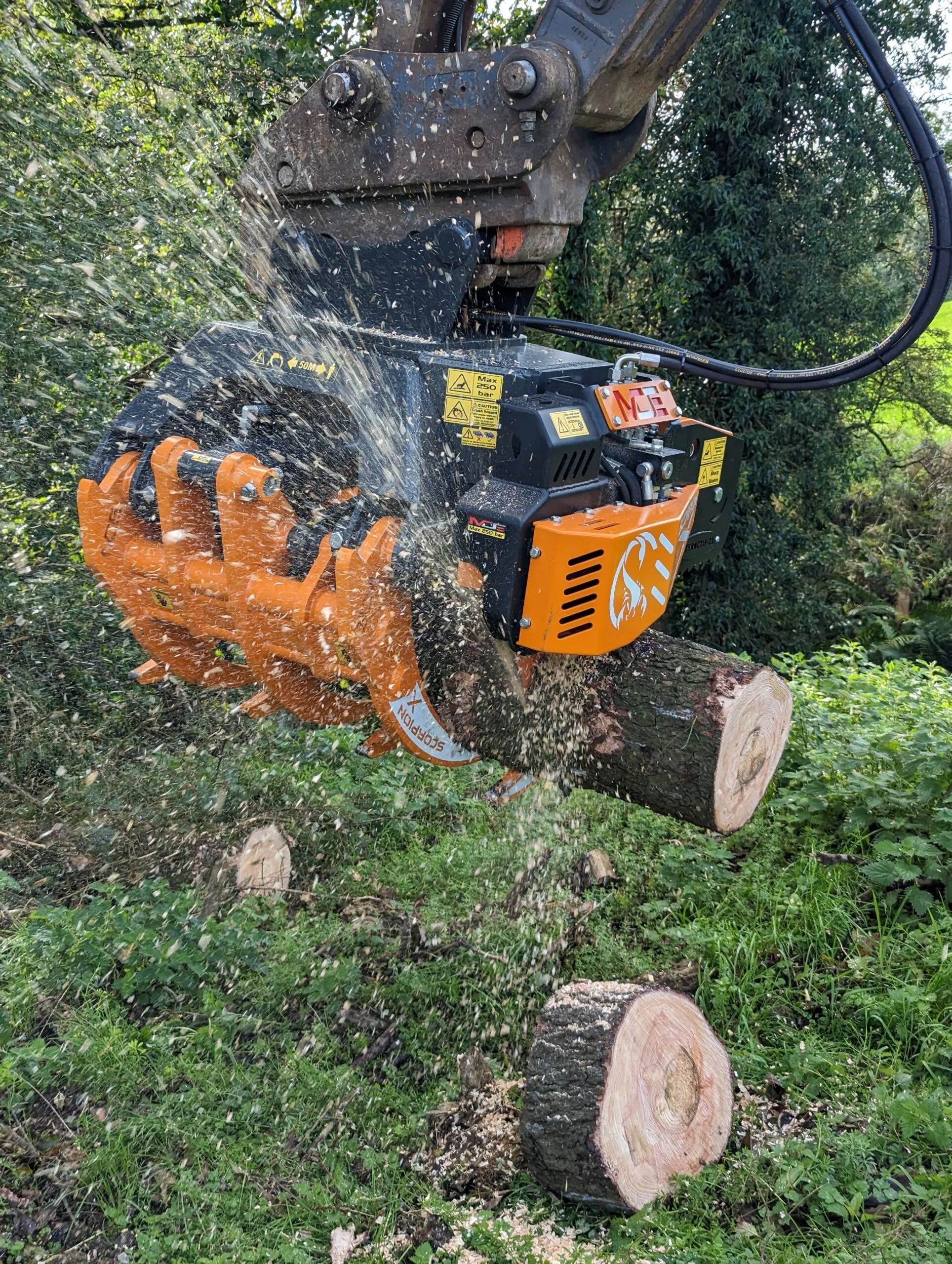

MDE’s Scorpion X Grapple Saw seamlessly integrates a powerful chainsaw with a robust hydraulic grapple. This dual functionality allows operators to efficiently grab and cut timber in a single pass. Designed to securely hold and cut material, the grab can also be used for secondary pickup for fallen trees, branches, or other debris. Its versatile design enables efficient cutting, sorting, or stacking of materials on-site. This model in the Scorpion X Grapple Saw Range will suit the majority of machines ranging 12 – 18 tonne. Specifications Excavators 13t - 18t Width 31" Height 40" Teeth Thickness 1.18" Grapple Opening 55.11" Grapple Closing 4.3"" Weight 2600LBS Cutting Diameter 19" How this works Total of 3 hydraulic lines 1-case drain line 1-pressure line 1-Return line It will come with a plug & play wiring harness that will need to be fitted to the excavator to run this system Run the cable up the boom to inside of the cab Fit the momentary buttons to the joystick of the excavator One button will select saw function Second Button will select rotation function Once you select the function you want you use the excavator aux services to fire up the function on the unit and control it
