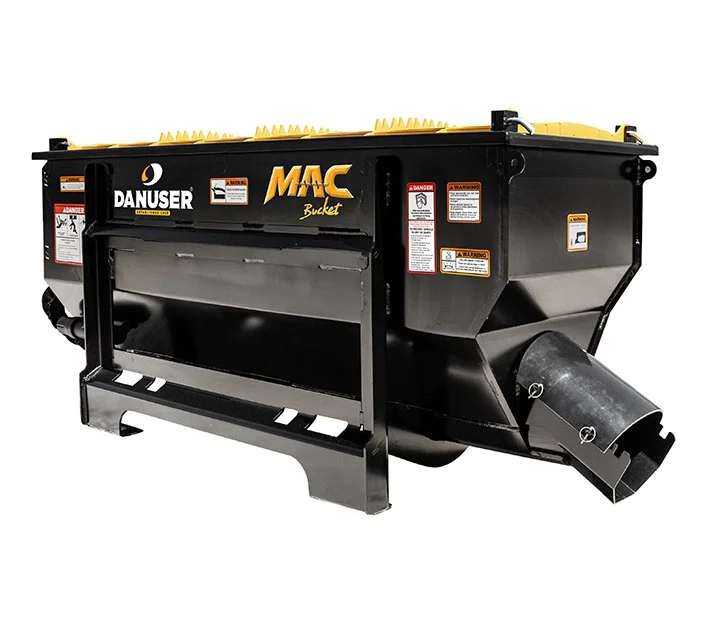

STEEL AUGER Transport, mix, and dispense concrete, wildlife feed, agricultural grains, gravel, asphalt, and more! With a 1/2 yard base capacity (13.5 cubic ft.), and a 3/4 yard extended capacity (20 cubic ft.), the MAC Bucket replaces the manual labor of moving and mixing materials and is perfect for tight conditions where larger equipment is not ideal. This mixing and conveying (MAC) bucket features a skid-steer quick attach mount on both sides of the bucket, which allows for discharge from both the left and right sides. It is designed with no discharge gate and with the ability to self-load from loose piles, making the MAC Bucket a true one-person operation. All buckets come standard with two (2) multi-linked chutes (24" long) and two (2) 7' long hoses with flush-faced couplers (ISO 16028). Capacity 1/2 yard (13.5 cubic ft.); up to 3/4 yard (20 cubic ft.) with optional hopper extension Concrete Mix Capacity (80-lb bags) Approx. 18 (1/2 yd) Approx. 25 (3/4 yd) Dispense Rate 28 seconds @ 24 GPM Hydraulic Requirements Up to 24 GPM Up to 3,500 PSI Mounting Options Skid-Steer Quick Attach Height, Grate Lowered (A) (inches) 33.5" Height, Grate Open (B) (inches) 47" Overall Width (C) (inches) 26" Overall Length (D) (inches) 77.4" Overall Hopper Length (E) (inches) 71.3" Weight 620 lb. Auger Diameter with Steel (inches) 6.12" Center Column Diameter (inches) 1.32" O.D. .18" wall Auger Length (inches) 60" Flighting Spacing (inches) 4"
