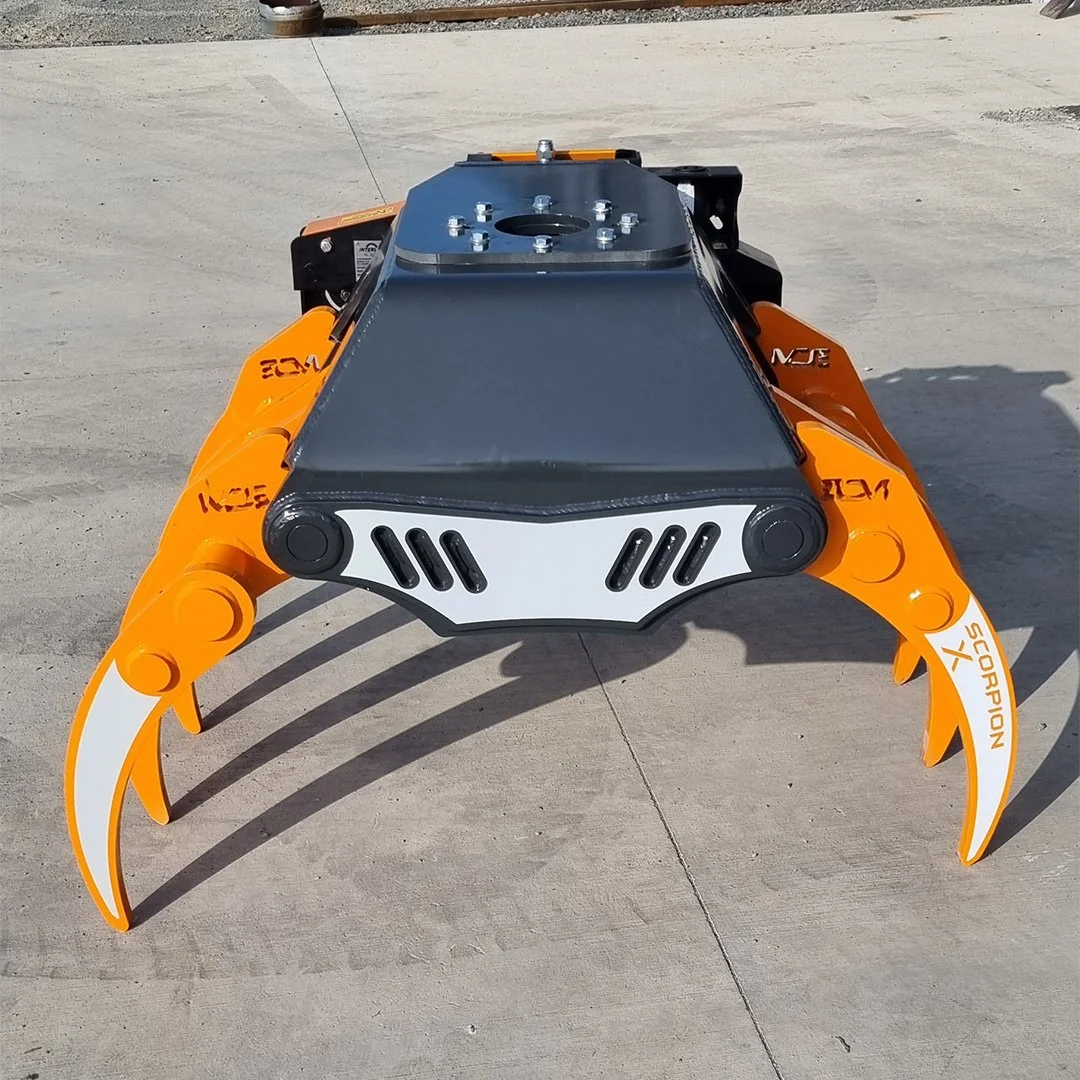

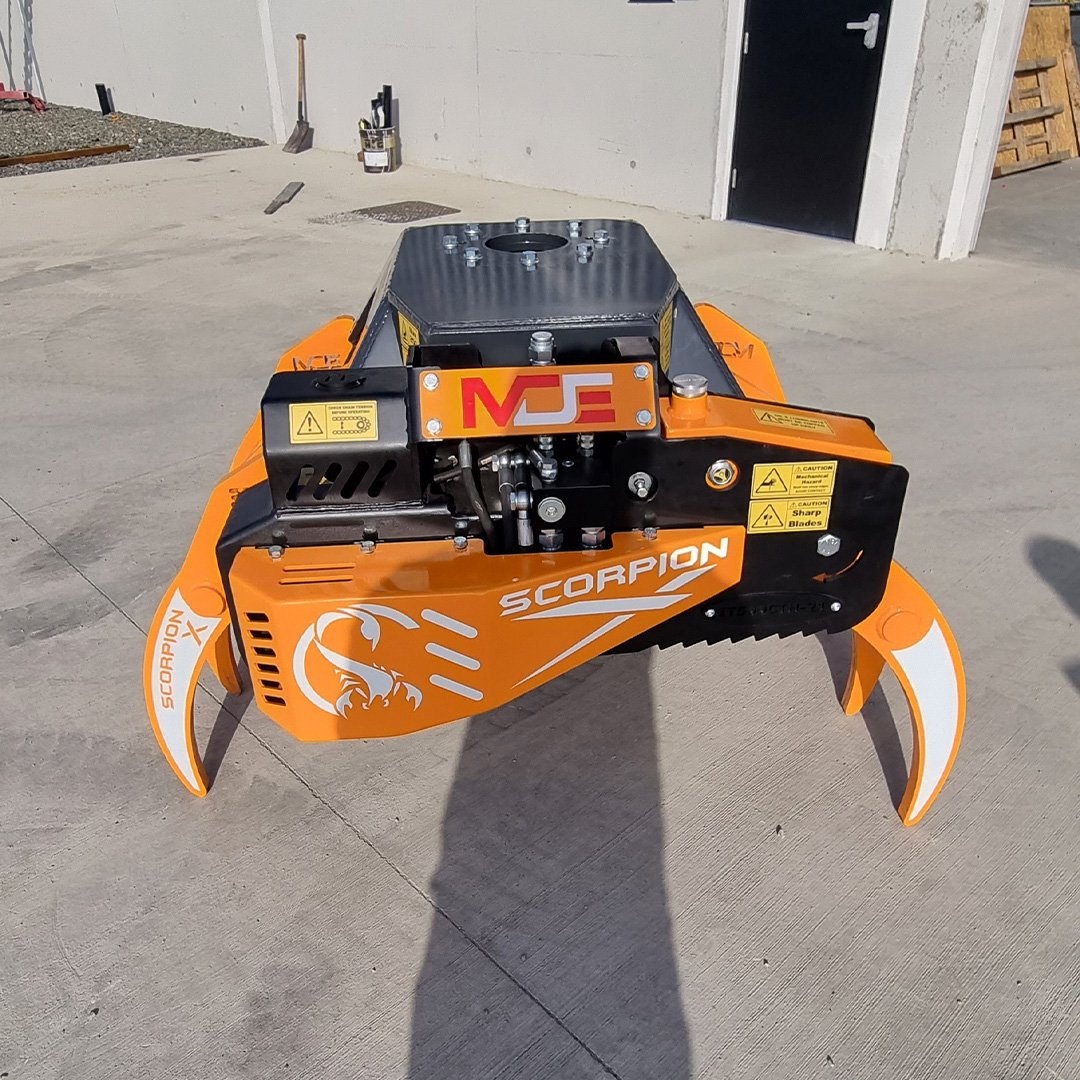

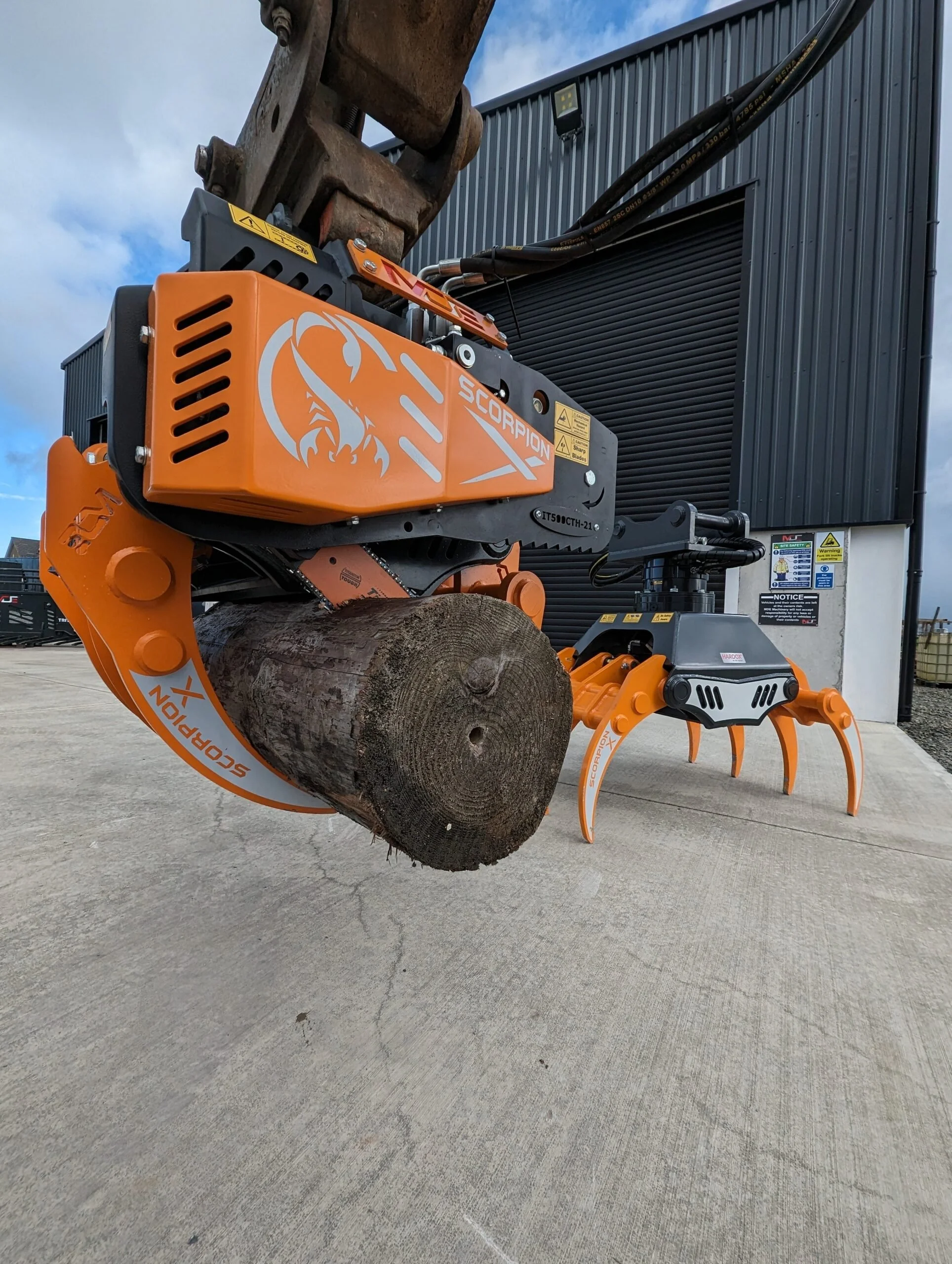

MDE MACHINERY SX1650SAW/SX WORM DRIVE ROTATION/ SX1650MOUNT

The SX1650 is a valuable addition to any landscaping or construction site, offering excellent gripping power, durability, and versatility. Specifications Excavators 18t - 35t Width 38.1" Height 48.42" Teeth Thickness 1.57" Grapple Opening 64.9" Grapple Closing 4.72"" Weight 2100LBS Cutting Diameter 27" How this works Total of 3 hydraulic lines 1-case drain line 1-pressure line 1-Return line It will come with a plug & play wiring harness that will need to be fitted to the excavator to run this system Run the cable up the boom to inside of the cab Fit the momentary buttons to the joystick of the excavator One button will select saw function Second Button will select rotation function Once you select the function you want you use the excavator aux services to fire up the function on the unit and control it
