GREEN TEC 9991602R-40/OPTE4335/GTEMOUNT

$0.00
sold out

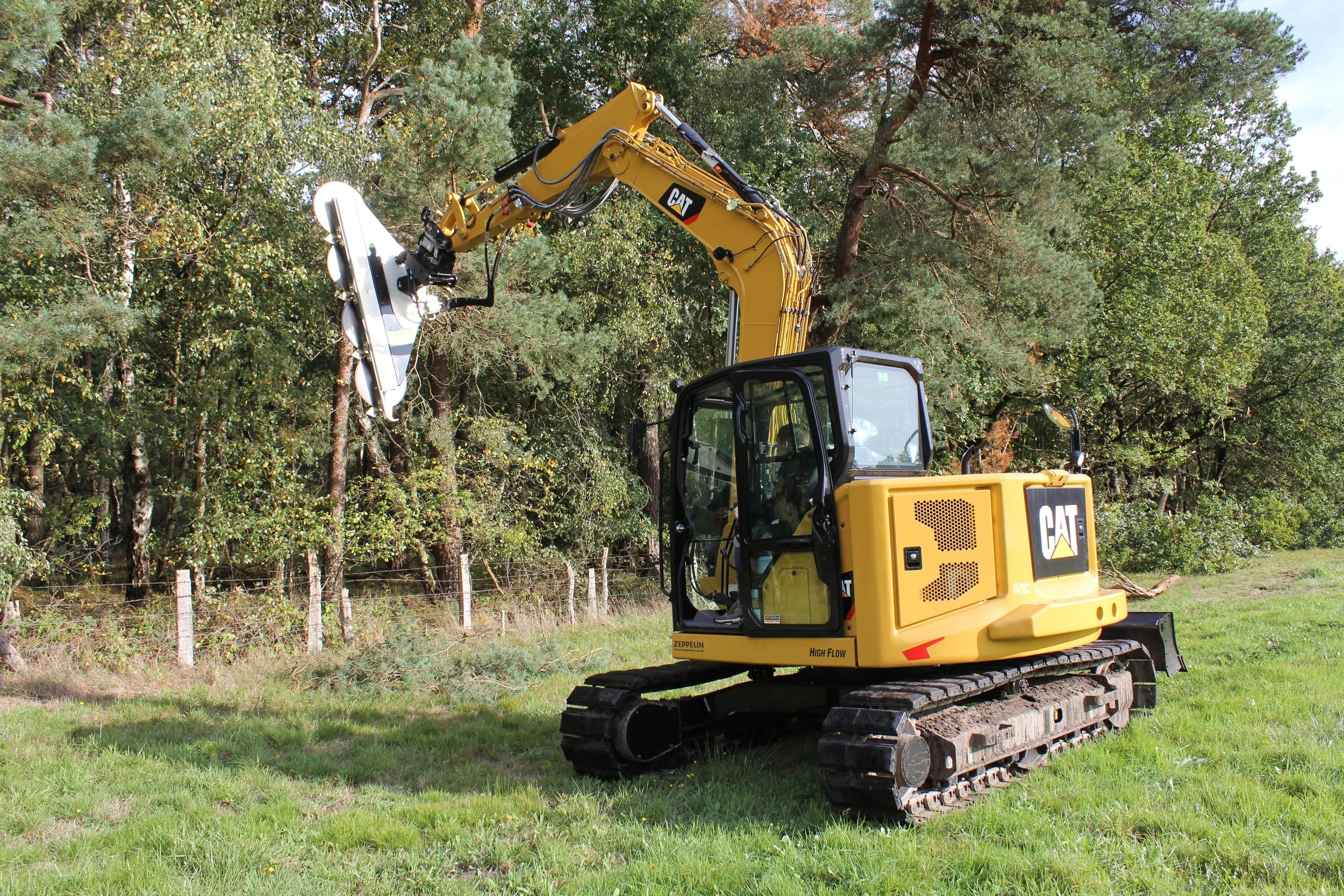

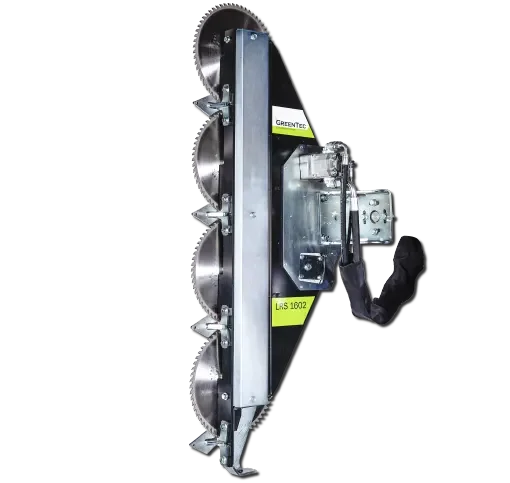

LRS 1602 Maintain trees in forest areas, orchards or near agricultural fields with our Quadsaw LRS 1602. A strong branch guider is fitted to each blade which ensures that all branches are pruned with a smooth cut. The saw is hydraulic driven and can be mounted on small and medium-sized vehicles, such as skid steer loaders, front-end loaders, tractors and excavators. LRS 1602 Working width 1.6 m 5’3” Saw blades with Widia teeth 4 pcs: Ø 40 cm 4 pcs: Ø 1’4” Branch thickness 0.5-12 cm 0.20”-4.72” Driving speed up to 5 km/h 3.11 mph Blade speed 2600-2700 rpm Required hydraulic connections 1 x double acting + 1 x drain Minimum oil flow 40 l/min @ 190 bar 10.6 gpm @ 2756 psi Weight 110 kg 243 lb Equipment overview Blade diameter: 40 cm (1'4") Standard Oil engine Standard Carbide tipped blades Standard Belt stretcher Standard Power Band belt drive Standard Belt tension gauge Standard Large smooth surface Standard Narrow body Standard Branch guider at each saw blade Standard 4 circular blades in a line Standard 7° angle allows overlap between the blades Standard
