GREEN TEC 9992402R-50T/OPTE4266-50/GTEMOUNT

$0.00
sold out

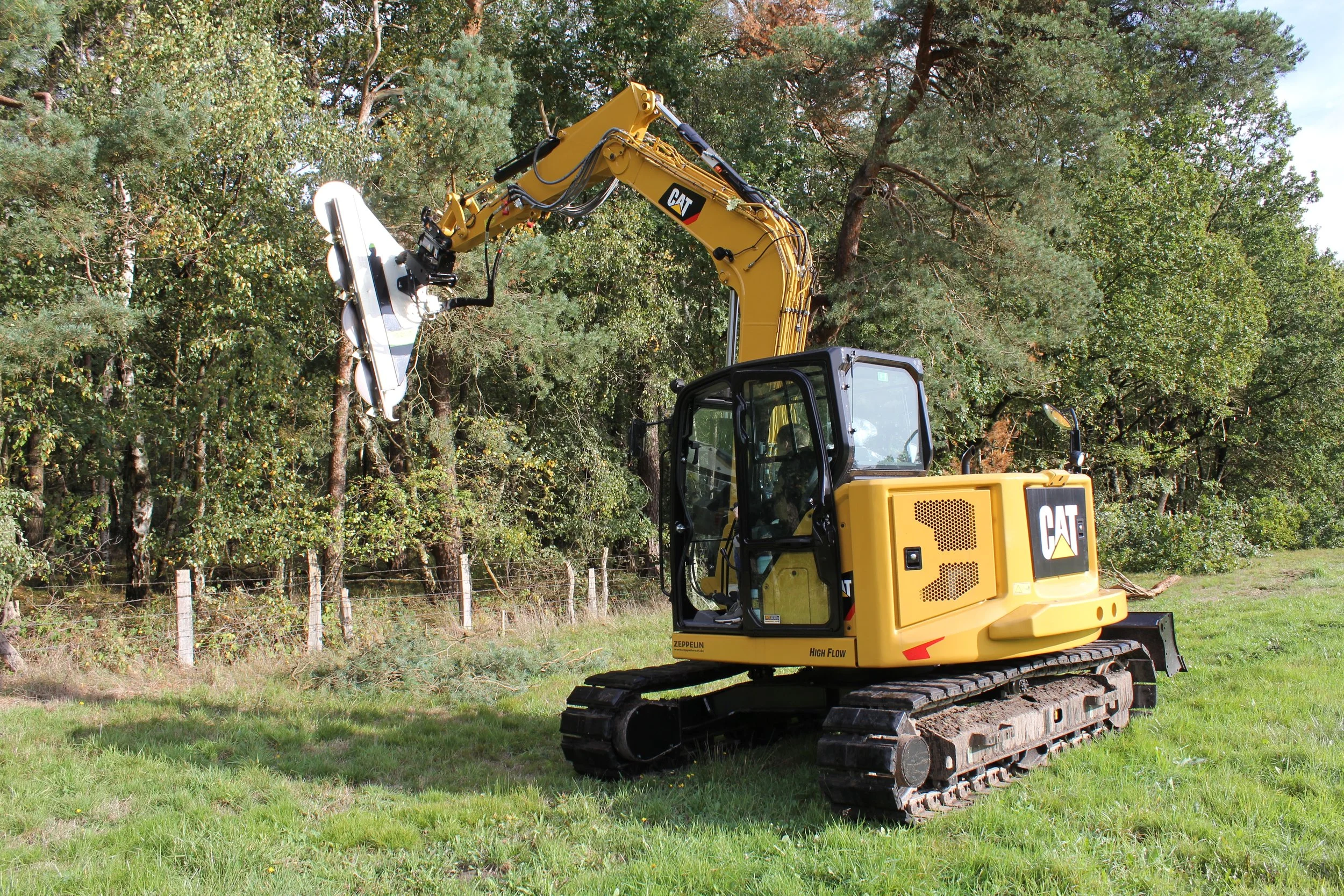

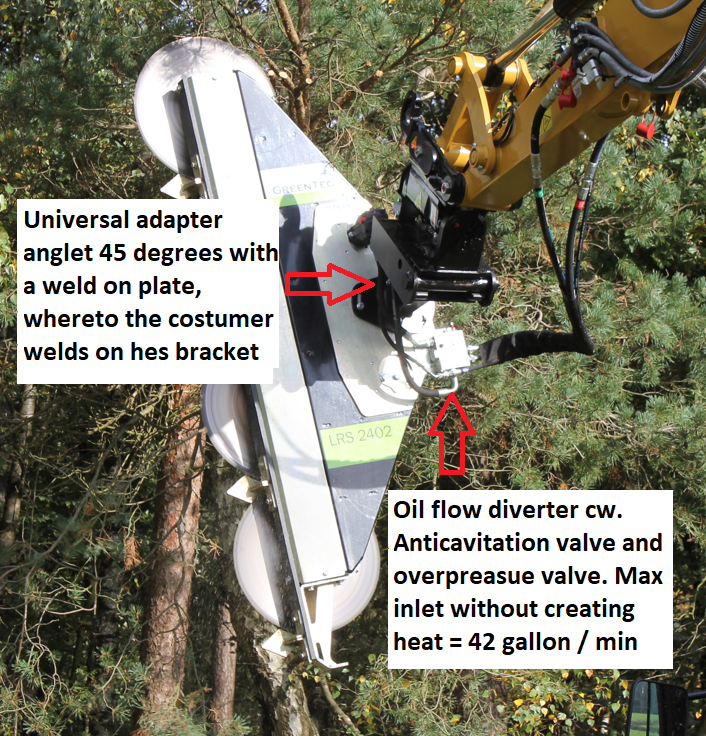

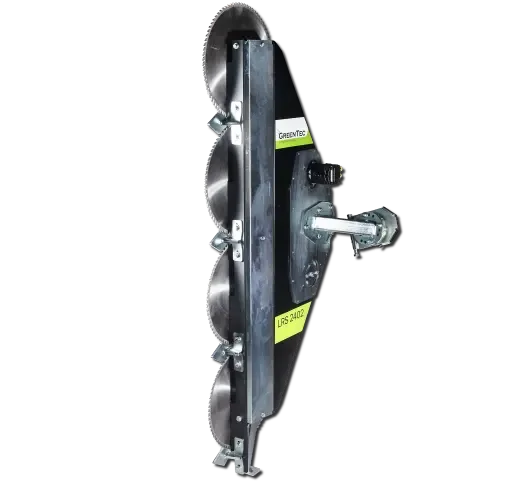

The Quadsaw LRS 2402 wields four circular blades with carbide tipped teeth that are extremely sharp and provide a smooth cut of branches and limbs up to 21 cm (8.27”) in thickness. The circular saw has many uses, such as trimming back hedgerows or maintaining paths and roads in forest areas. The saw is hydraulic driven and can be mounted on large and medium-sized vehicles, such as telehandlers, front-end loaders, tractors and excavators. Working width 2.4 m 7’10” Saw blades with Widia teeth 4 pcs: Ø 59.5 cm 4 pcs: Ø 1’11" Branch thickness 0.5-21 cm 0.20”-8.27” Driving speed up to 5 km/h 3.11 mph Blade speed 3000-3200 rpm Required hydraulic connections 1 x double acting + 1 x drain Minimum oil flow, 28 ccm motor 85 l/min @ 150 bar 22.5 gpm @ 2176 psi Alternative oil flow, 19 ccm motor 50 l/min @ 180 bar 13.2 gpm @ 2611 psi Weight 239 kg 527 lb Blade diameter: 59.5 cm (1’11") Standard Continuous duty motor Standard Carbide tipped blades Standard Belt stretcher Standard Power Band belt drive Standard Belt tension gauge Standard Anti-cavitation valve Standard Large smooth surface Standard Narrow body Standard Branch guider at each saw blade Standard 4 circular blades in a line Standard 7° angle allows overlap between the blades Standard Skid shoe (the saw avoids hitting the ground) Standard Pressure relief valve Standard Saw blades or rotor blades, 4 pieces Standard
