MDE MACHINERY SX1400F/SX1400MOUNT/SX1400ARB150-3

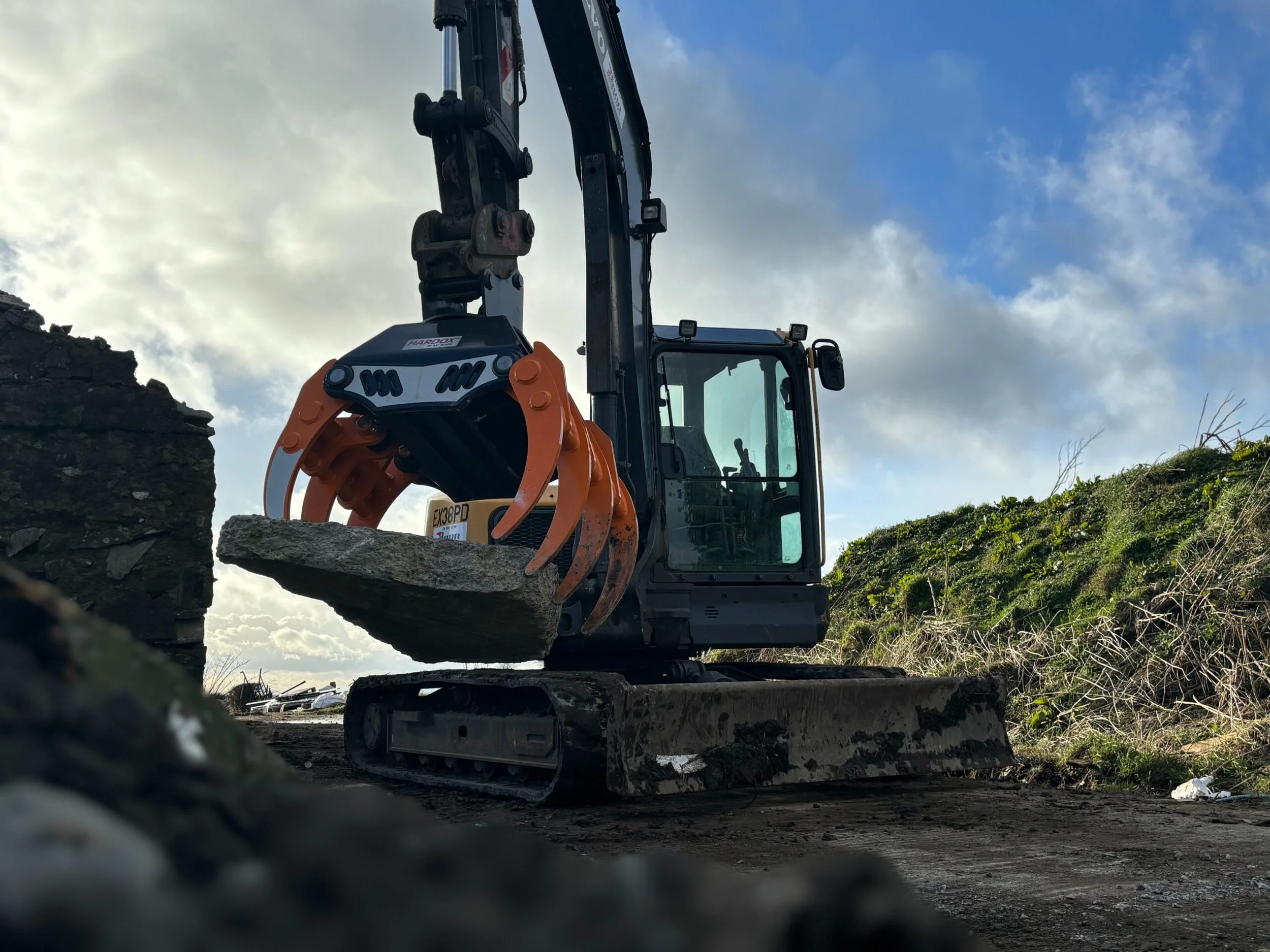

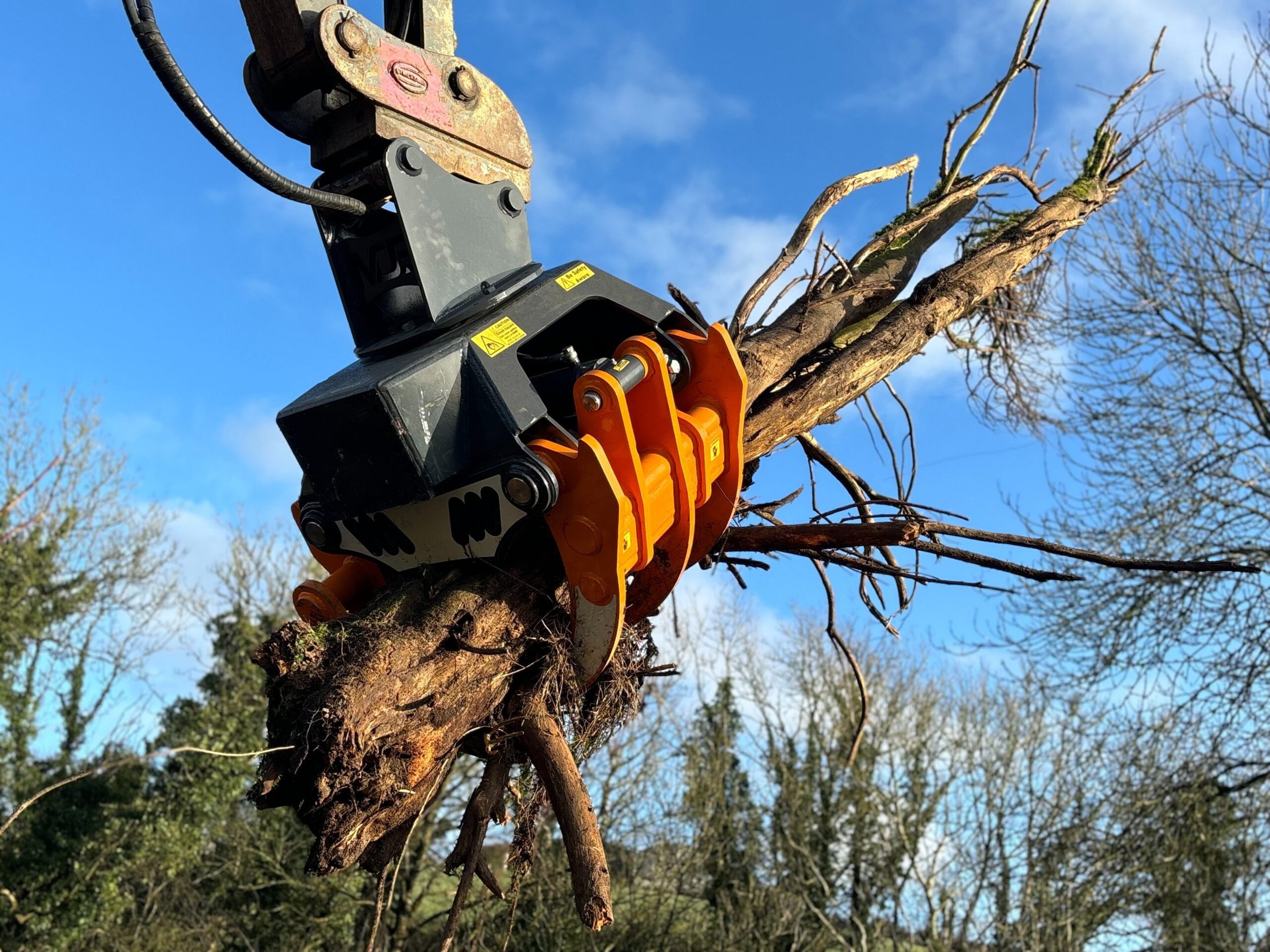

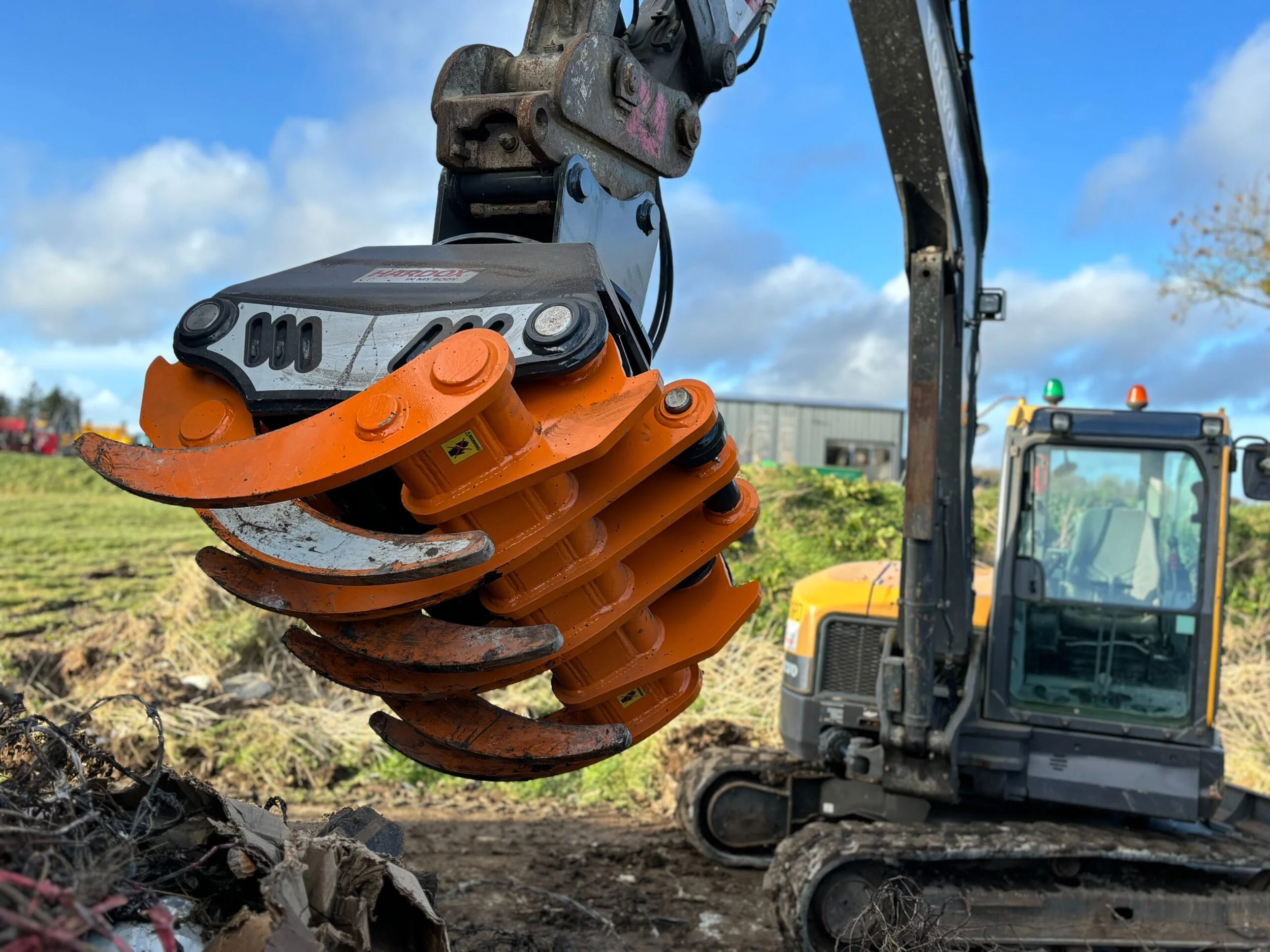

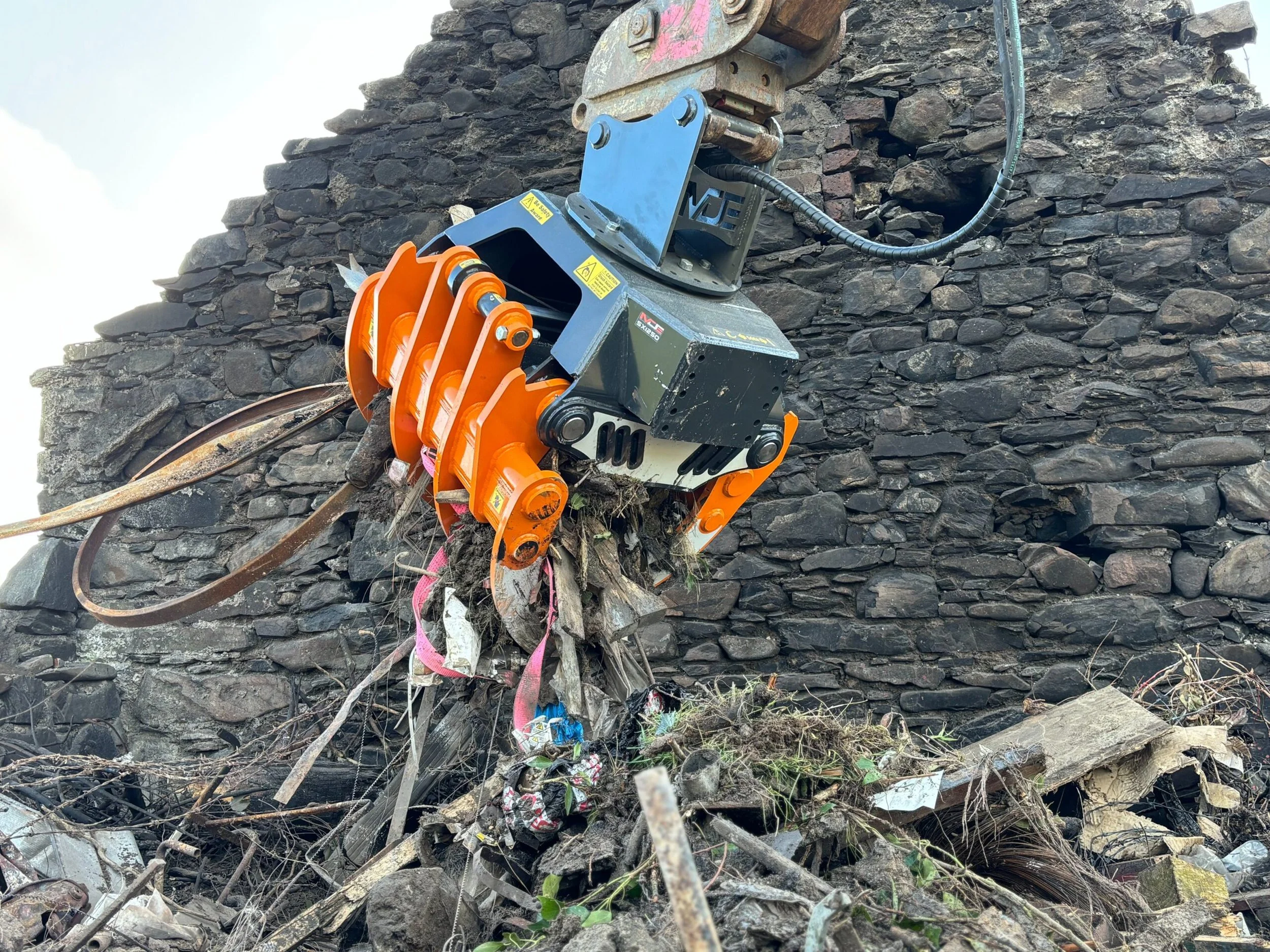

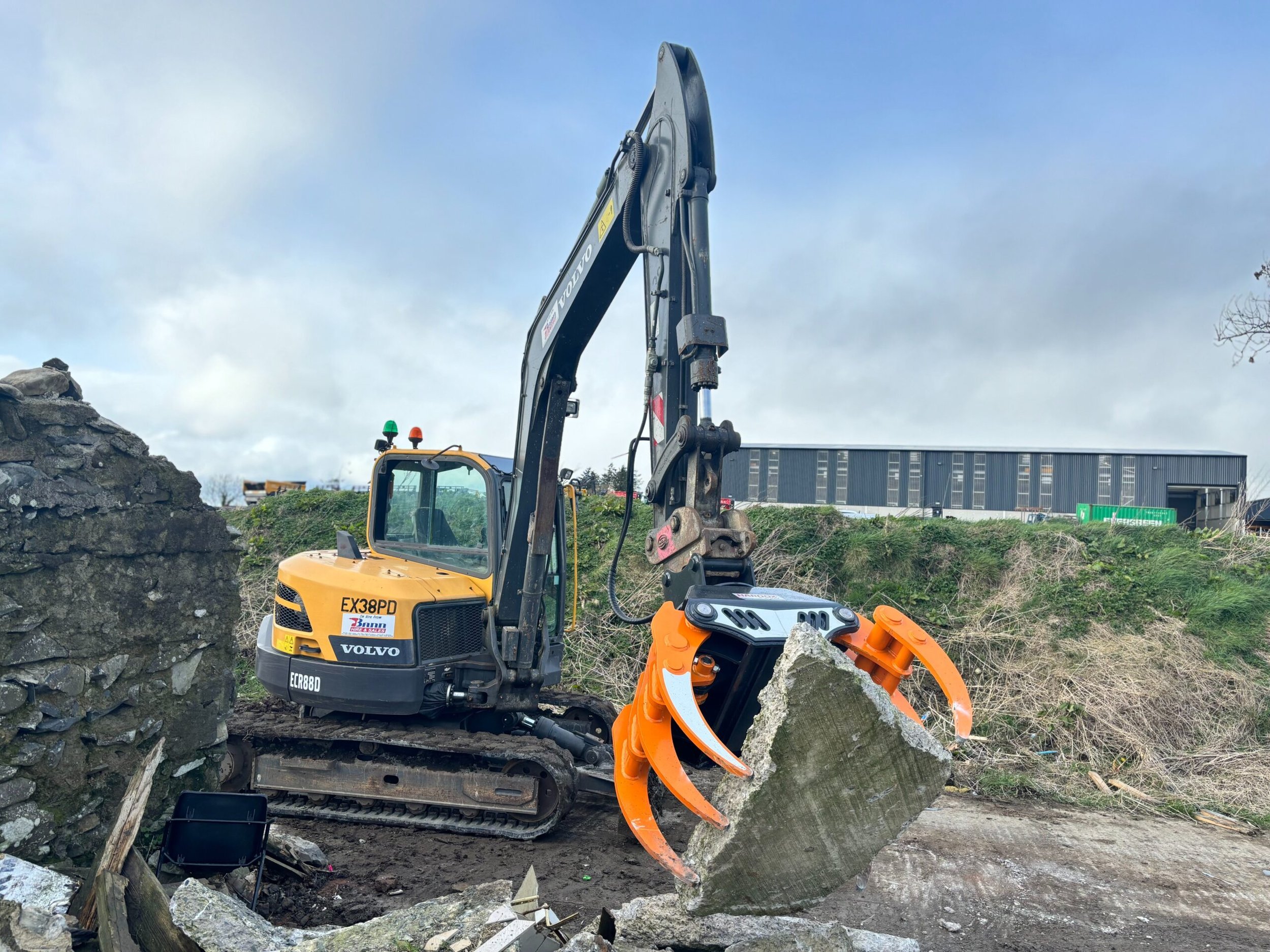

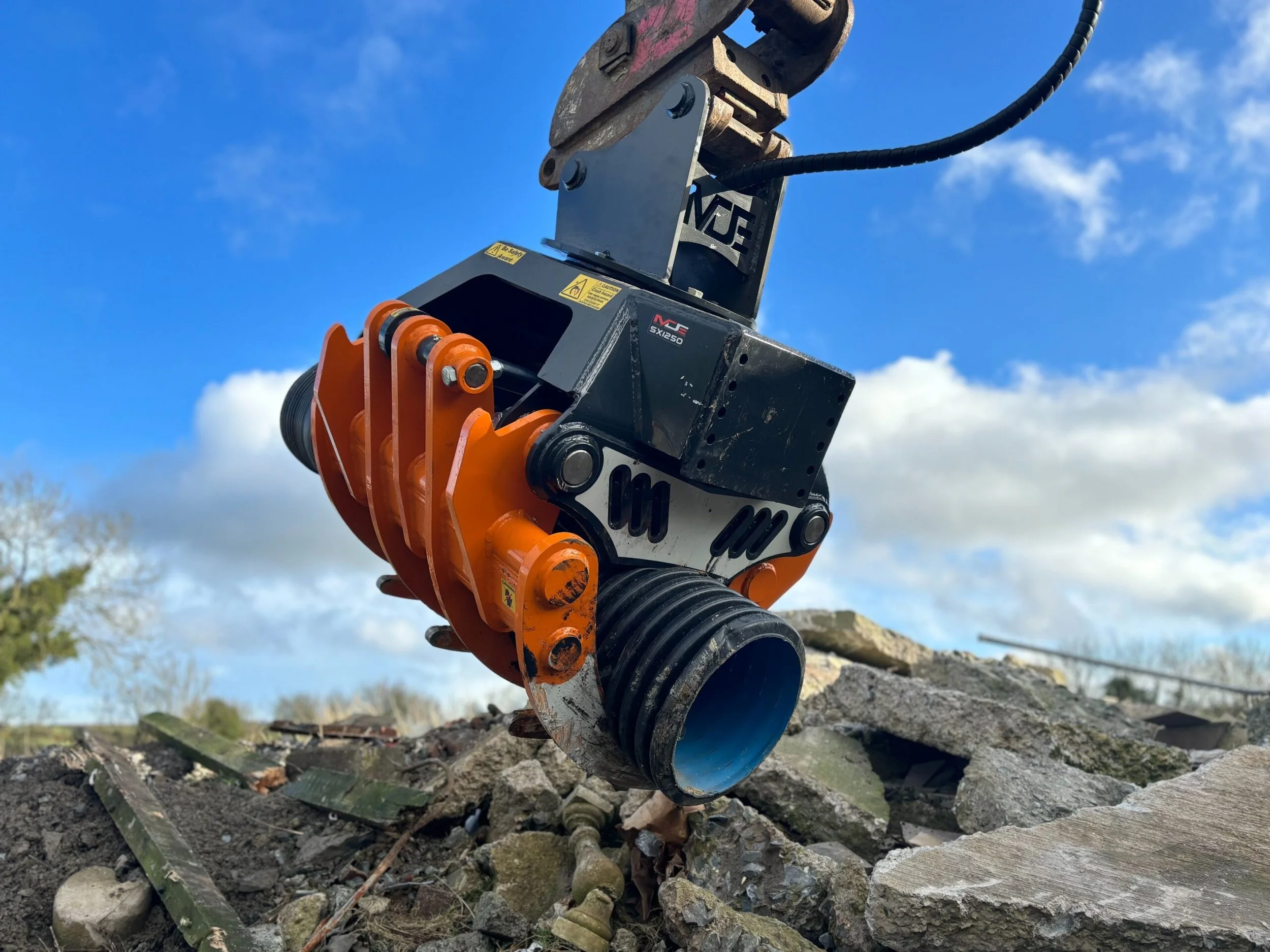

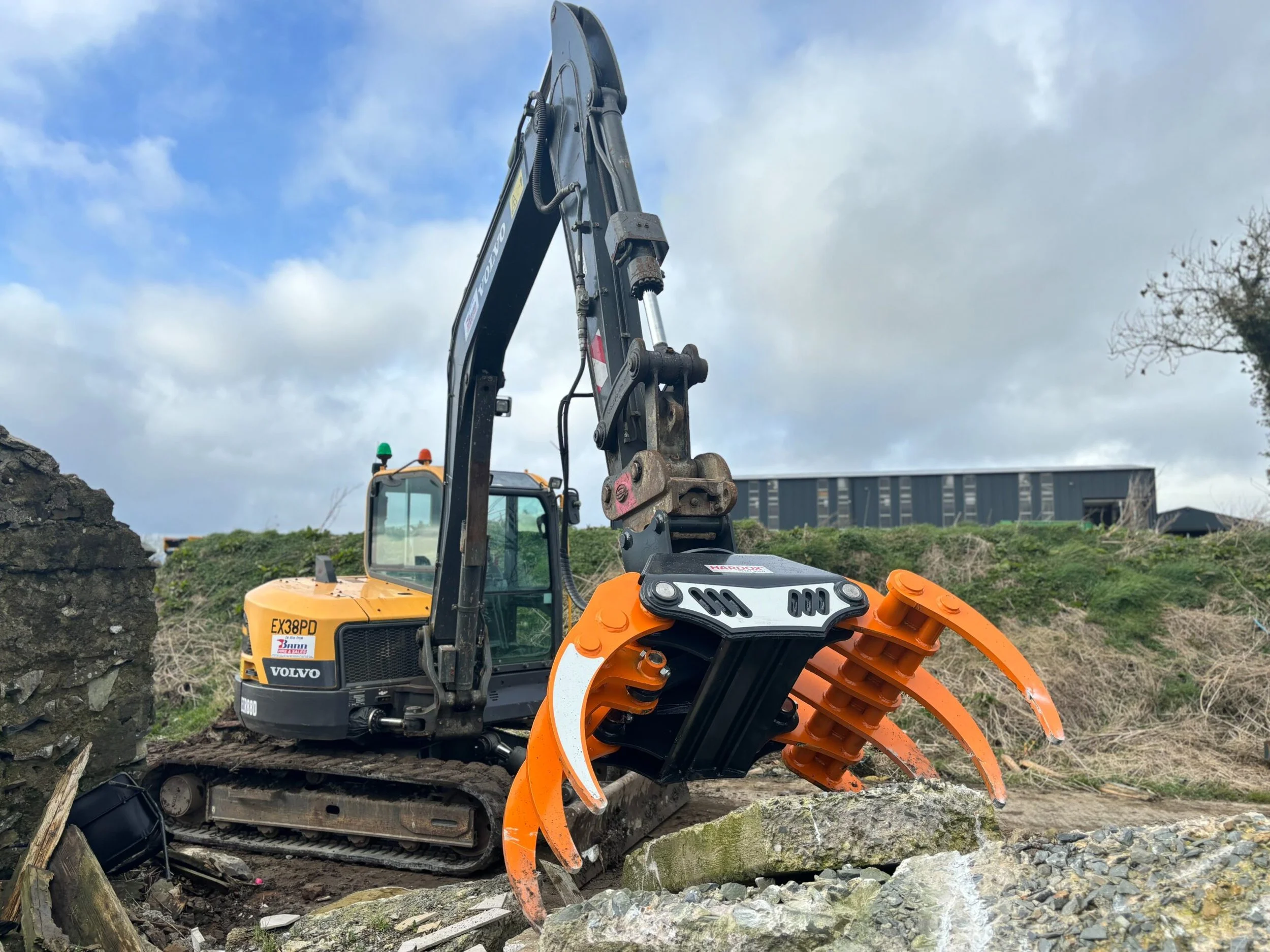

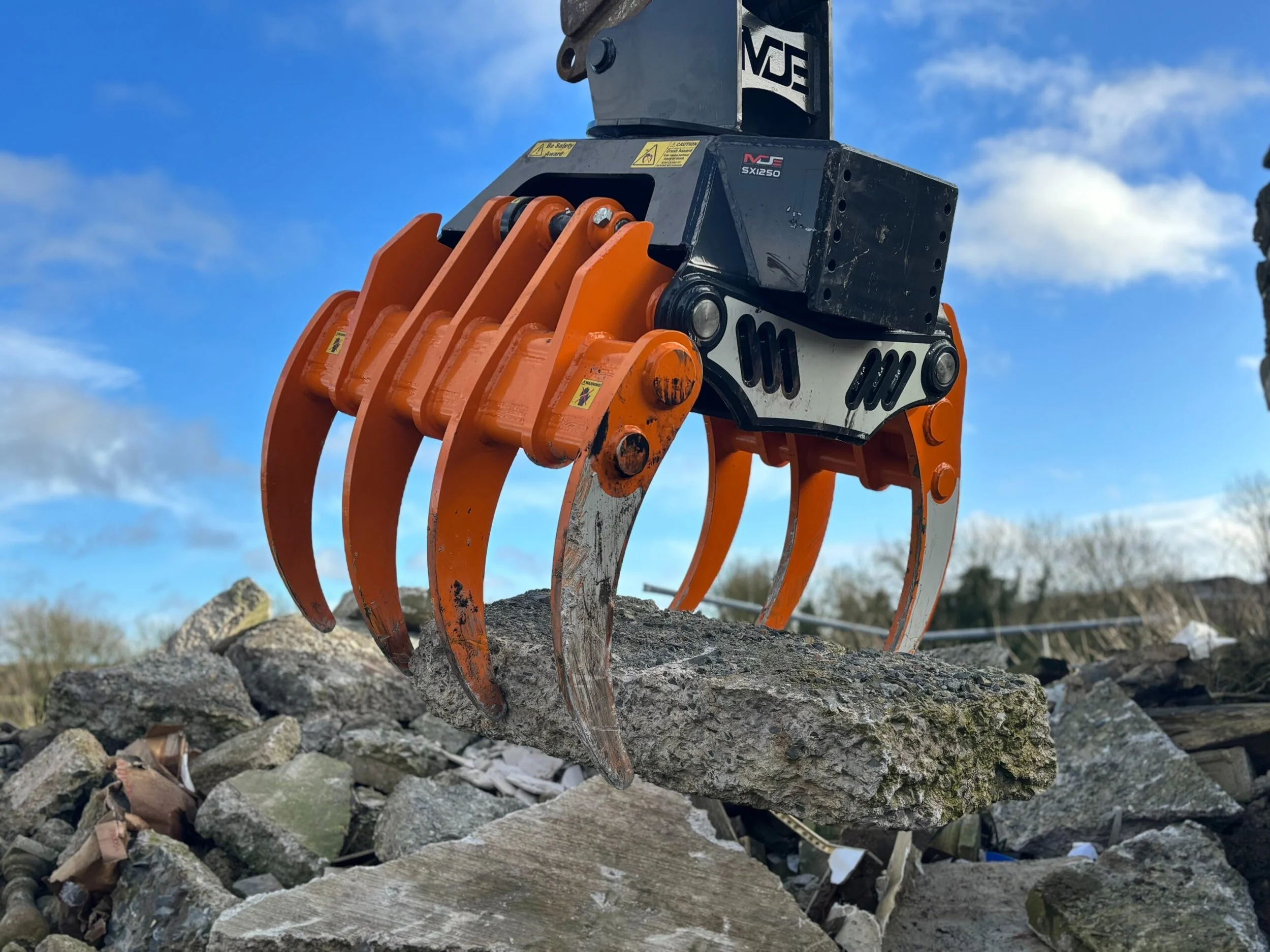

The SX1400R will operate on the mid range sized excavator and is ideal for small and large scale operations. Our SX1400R is perfect for clearing sites and general landscape work. The grapple only needs a supply and return aux hydraulics. The rotator is electric over hydraulic. Specifications Excavators 13t - 18t Width 31.5" Height 40.18" Teeth Thickness 1.18" Grapple Opening 73.25" Grapple Closing 4.38" Weight 1446LBS Rotational 360* HOW TO RUN THE GRAPPLE THE BLACK BUTTON DIVERTS THE OIL FLOW TO THE ROTATOR HOLD THE BUTTON DOWN AND NOW USE THE AUX FLOW ON THE JOYSTICK ON THE TRACTOR TO RUN THE ROTATOR LEFT OR RIGHT THE RED STICKER PULLS OFF THE BUTTON SO YOU CAN STICK IT THE OPPOSITE JOYSTICK TO KEEP BOTH HANDS-ON JOYSTICKS DURING OPERATION RELEASE BUTTON TO DIVERT OIL FLOW BACK TO GRAPPLE FUNCTION
