GREEN TEC 9992403R-40SR/OPTE1115/9991602R-40

$34,697.00
sold out

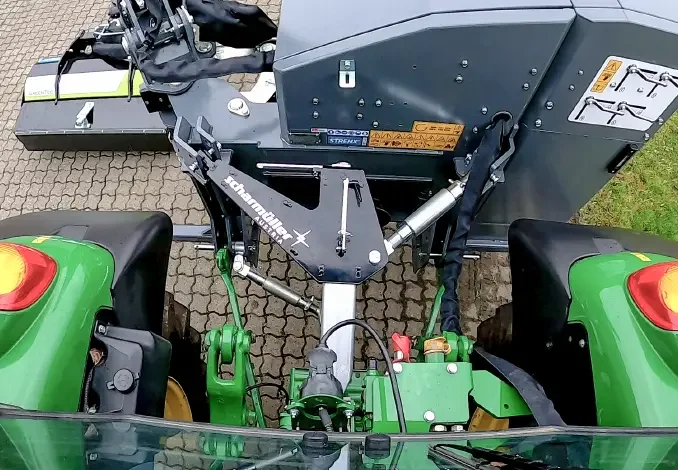

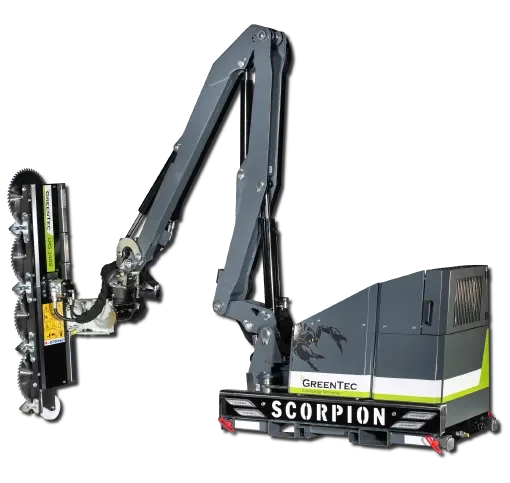

Our Scorpion 430 S is a professional boom mower used by municipalities, agricultural contractors, forest workers, gardeners and landscapers. The small size of the boom mower makes it suitable for areas with limited space, such as verge mowing on bike paths or hedge trimming in residential areas. It is also possible to trim trees on narrow tracks in forests or maintain hedgerows on agricultural fields. The Scorpion 430 S boom mower is designed for small tractors with a weight of at least 2,000 kg (4,409 lb). Instead of the traditional three-point mounting, the Scorpion models have four mounting points on the mainframe. It is a much faster and reliable mounting system. Equipment overview Hybrid Arm System with dual function Standard Strenx 700 steel construction Standard 155° hydraulic turn of the arm with power control Standard Danfoss proportional valve PVG 16 Standard Mini joystick with 3 proportional functions Standard 2 oil flows: 40 and 25 l /min (10.6 and 6.6 gpm) for attachment tool Standard Hydraulic float of arm and cutting angle Standard Oil cooler Standard 80 l (21.13 gallons) oil tank capacity Standard 4-point mounting for cat. 1 or 2 Standard PTO 350-540 rpm (rear mounted) Standard Holes for pallet forks Standard Transport safety Standard LED lights Standard *MAX HORIZONTAL REACH 14'1" *MAX VERTICAL REACH 13'4" *MIN WEIGHT OF TRACTOR 4409 LBS *TRANSPORT WIDTH 7' 2" *WEIGHT OF BOOM MOWER WITH HEAD & COUNTERWEIGHTS 1741 LBS *4 POINT MOUNT FOR CAT 1 OR 2 SEE PICTURE IN IMAGES *CUTTING CAPACITY 4.72" *CUTTING WIDTH 5' 3" *MAX SPEED OF TRACTOR WITH SAW 3.11 MPH *BLADE SPEED OF SAW 2600-2700 RPM
