Round bale diameter Up to 6 ft (1,8 m) Square bale n/a Bale type Baleage/dry hay/straw Tandem axle Standard Tandem axle with brakes Optional Self-Steering axle with brakes Optional Safety chain Standard Self-loading arm design Tubular round Able to load a second row of bales N/A Tires 550/45-22,5 Caméra (de recul) Optional Tractor minimum hydraulic flow 2500 psi (172 bar) HP requirements 115 HP Double hydraulic connections required 3 PTO Speed/ PTO shaft N/A Controls Tractor’s hydraulic circuit Width – A 8 ft 4 in (2,55 m) Overall width (inlcuding loading arm) 8 ft 4 in (2,55 m) Height – B 7 ft 10 in (2,39 m) Overall height (inlcuding loading arm) 11 pi 11 po (3,64 m) Bed height - E 4 pi 9 po (1,44 m) Overall length – D 38 pi 5 po (11,76 m) Overall weight 12790 lb (5800 kg) Empty Weight on tow bar*** 2855 lb (1295 kg) Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) 14 Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) 14 Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) 14 Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) 12 Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) 12 Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m) n/a Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m) n/a Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m) n/a Loading arm lifting capacity 2500 lb (1135 kg)
Round bale diameter Up to 6 ft (1,8 m) Square bale n/a Bale type Baleage/dry hay/straw Tandem axle Standard Tandem axle with brakes Optional Self-Steering axle with brakes Optional Safety chain Standard Self-loading arm design Tubular round Able to load a second row of bales N/A Tires 550/45-22,5 Caméra (de recul) Optional Tractor minimum hydraulic flow 2500 psi (172 bar) HP requirements 115 HP Double hydraulic connections required 3 PTO Speed/ PTO shaft N/A Controls Tractor’s hydraulic circuit Width – A 8 ft 4 in (2,55 m) Overall width (inlcuding loading arm) 8 ft 4 in (2,55 m) Height – B 7 ft 10 in (2,39 m) Overall height (inlcuding loading arm) 11 pi 11 po (3,64 m) Bed height - E 4 pi 9 po (1,44 m) Overall length – D 38 pi 5 po (11,76 m) Overall weight 12790 lb (5800 kg) Empty Weight on tow bar*** 2855 lb (1295 kg) Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) 14 Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) 14 Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) 14 Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) 12 Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) 12 Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m) n/a Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m) n/a Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m) n/a Loading arm lifting capacity 2500 lb (1135 kg)

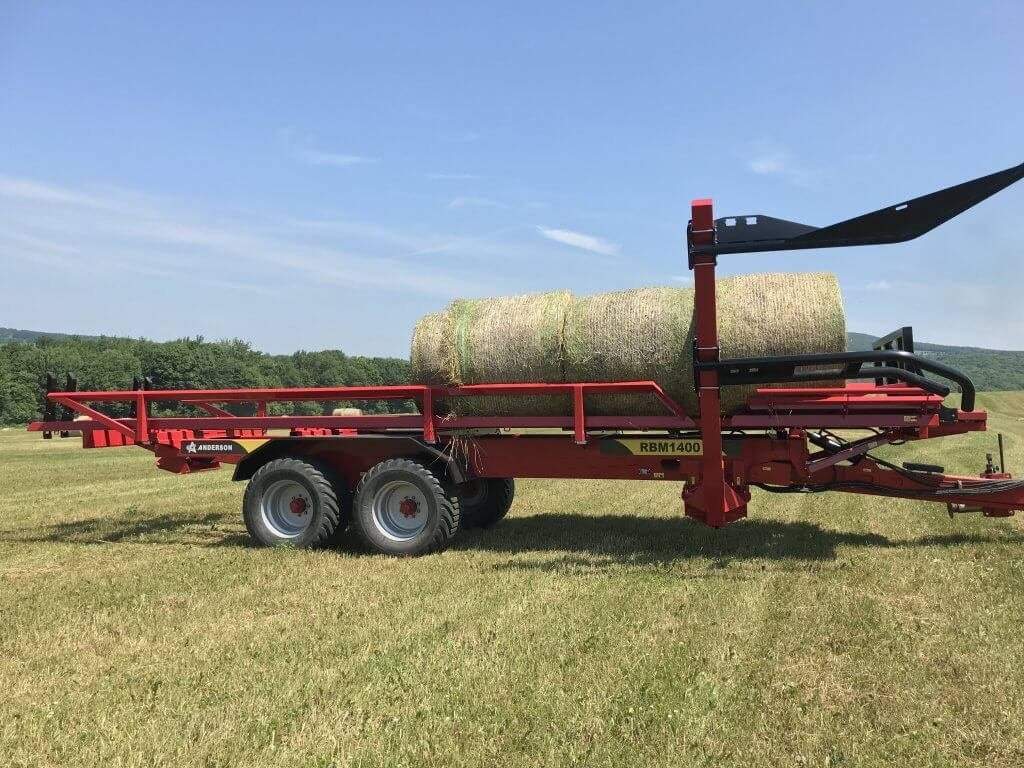

Image 1 of 3

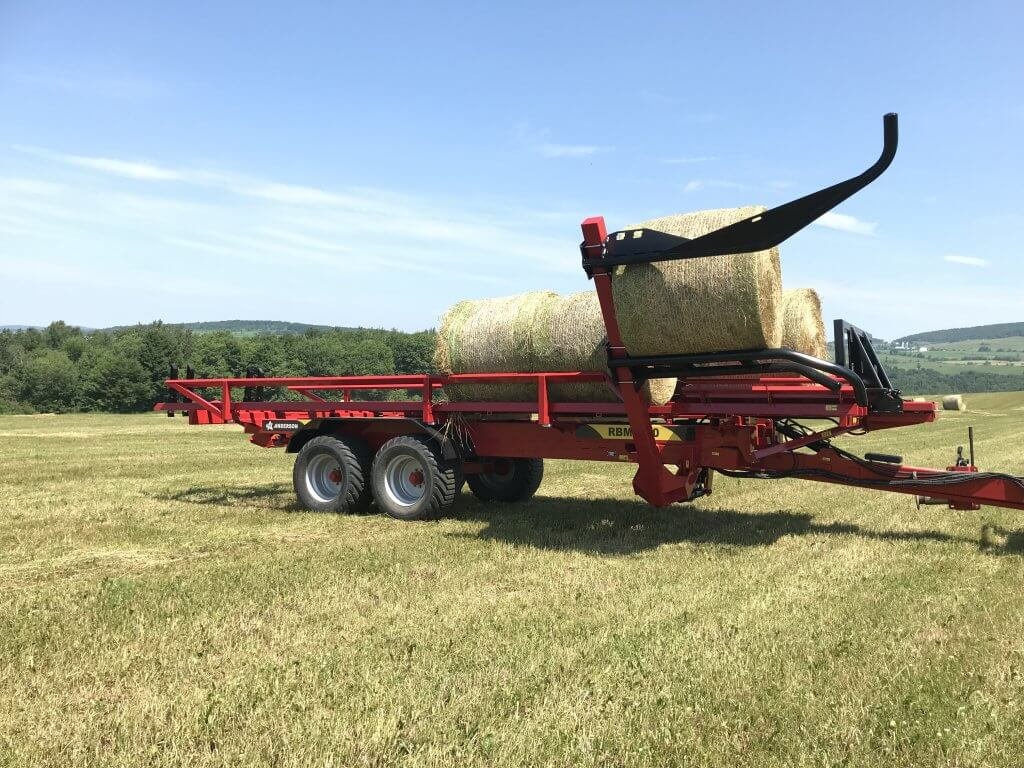

Image 2 of 3

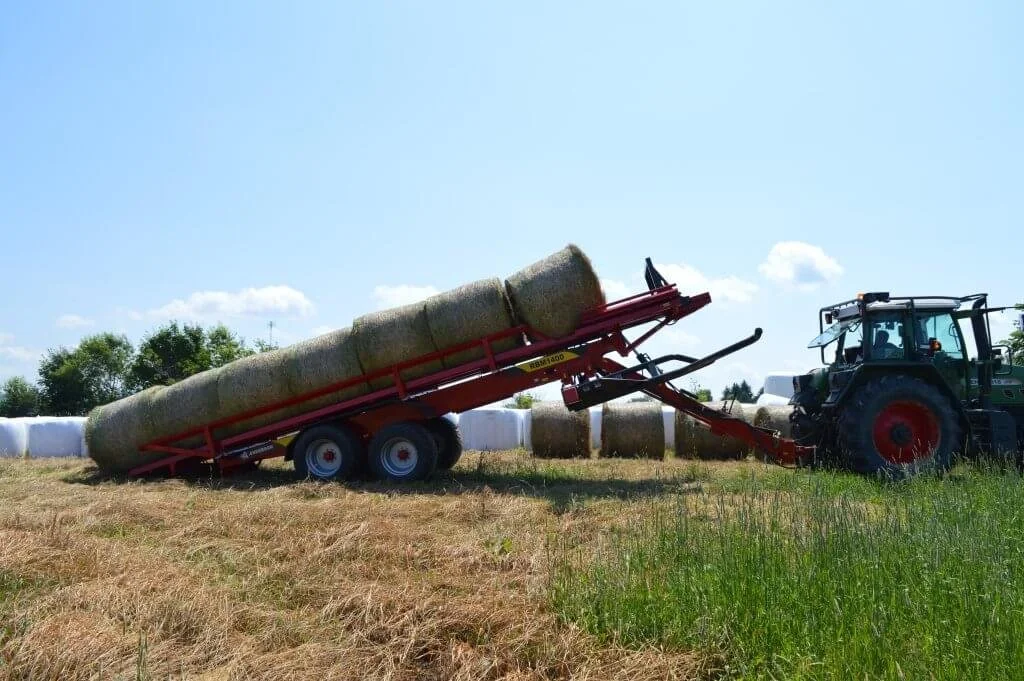

Image 3 of 3
