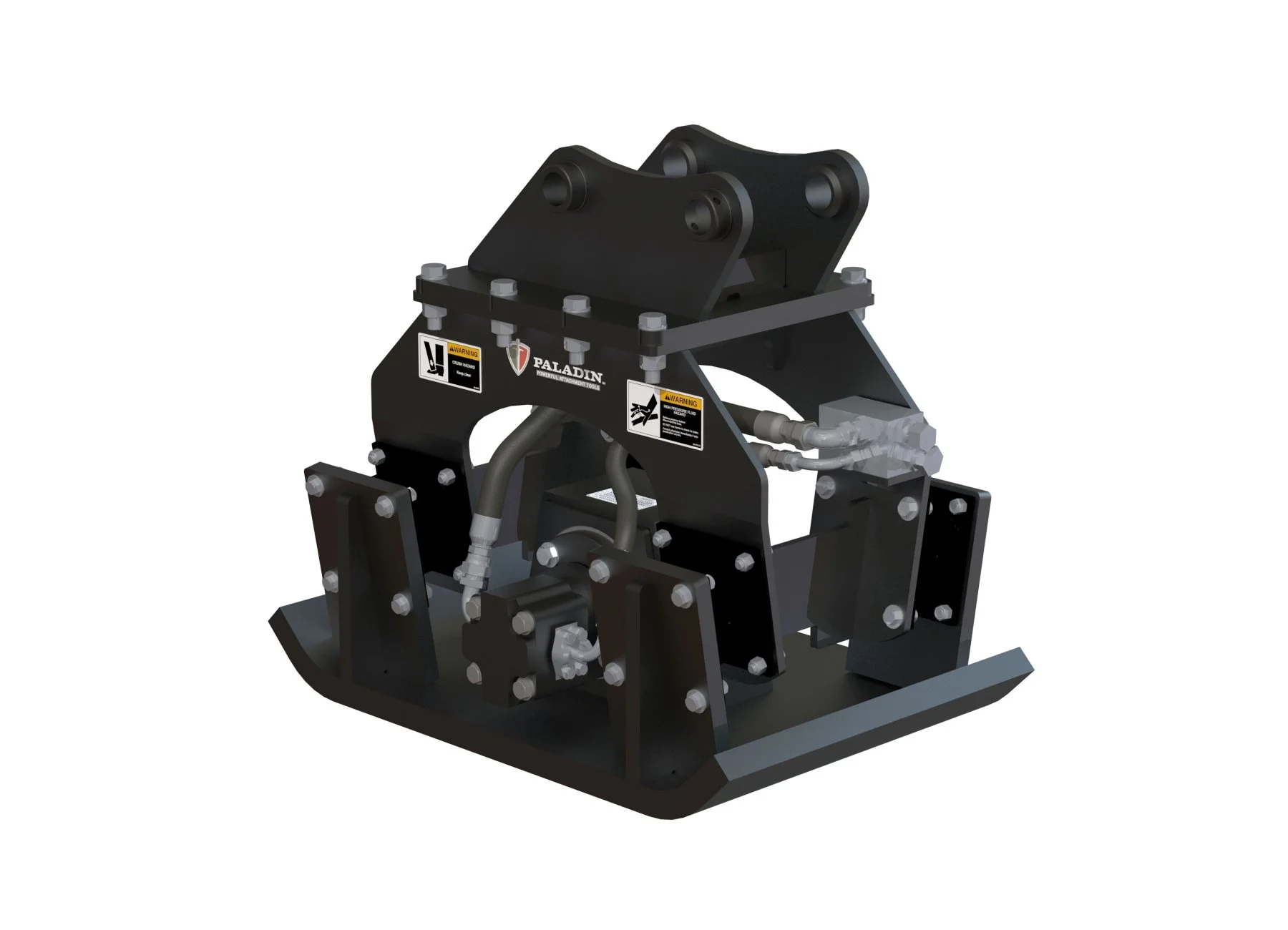

PALADIN TPC4K

$0.00
sold out
Paladin boom-mounted Strike Force ® TPC Plate compactors provide the perfect combination of impulse force and frequency for handling trench and surface compaction needs. Each of the TPC models is focused on the needs of the Contractor in road construction and repair, embankment preparation, utility, and waste drain excavation backfill, as well as special needs in sheet, post, and plate driving for soil stabilization. The TPC line of Compactors provides features to enhance compaction effectiveness as well as to protect the owners' investment by limiting damaging forces resulting from operation and hydraulic impulses. The TPC family is supported by the industry's largest dealer network and service expertise. Item TPC 250 TPC 350 TPC 1000 TPC 2K TPC 4K TPC 10K Impulse Force (lb) 2,500 3,400 6,400 8,000 11,350 22,000 Operation Weight (lb) 353 525 946 1,300 1,940 3,450 Min. Carrier Weight (lb) 5,000 5,000 9,000 12,000 16,000 50,000 Max. Carrier Weight (lb) 10,000 14,000 28,000 40,000 50,000 130,000 Baseplate Width (in) 11.75 18.75 23.5 24 25.5 33 Compaction Area (in 3 ) 352.5 487.5 822.5 912 981.75 1,633.5 Vibrations per Minute 2,000 2,000 2,000 2,000 2,100 2,100 Max. Hydraulic Flow (gpm) 25 25 25 40 60 70 Min. Hydraulic Flow (gpm) 9 12 12 24 28 40 Max. Back Pressure (lbf/in2) 250 250 250 250 250 250 Min. Hose Size (Inlet) (in) 0.5 0.5 0.75 0.75 0.75 0.75 Min. Hose Size (Outlet) (in) 0.5 0.5 0.75 0.75 0.75 0.75
