MDE MACHINERY SX1100F/SX1100MOUNT/SX1100ARH70

$16,394.54
sold out

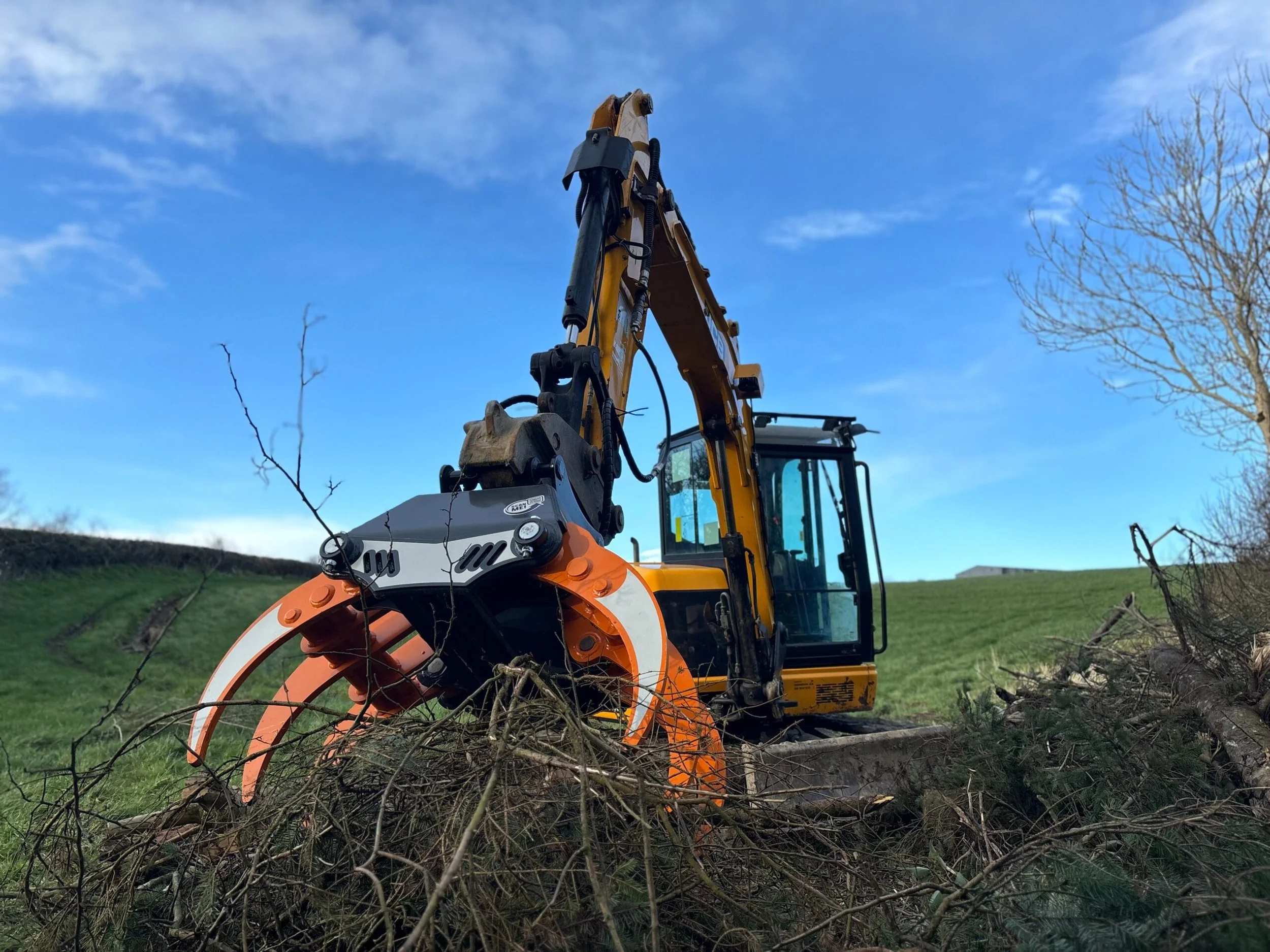

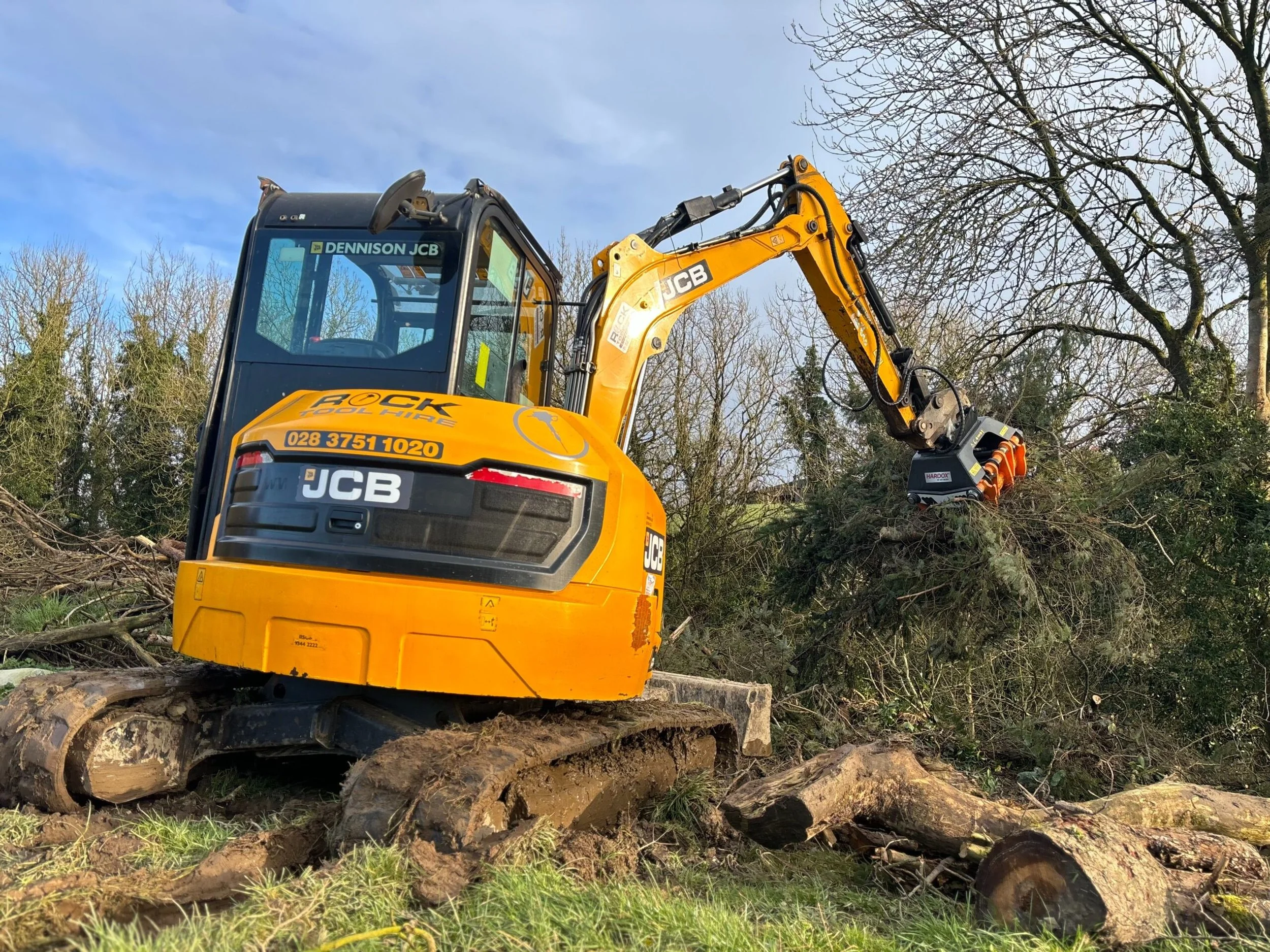

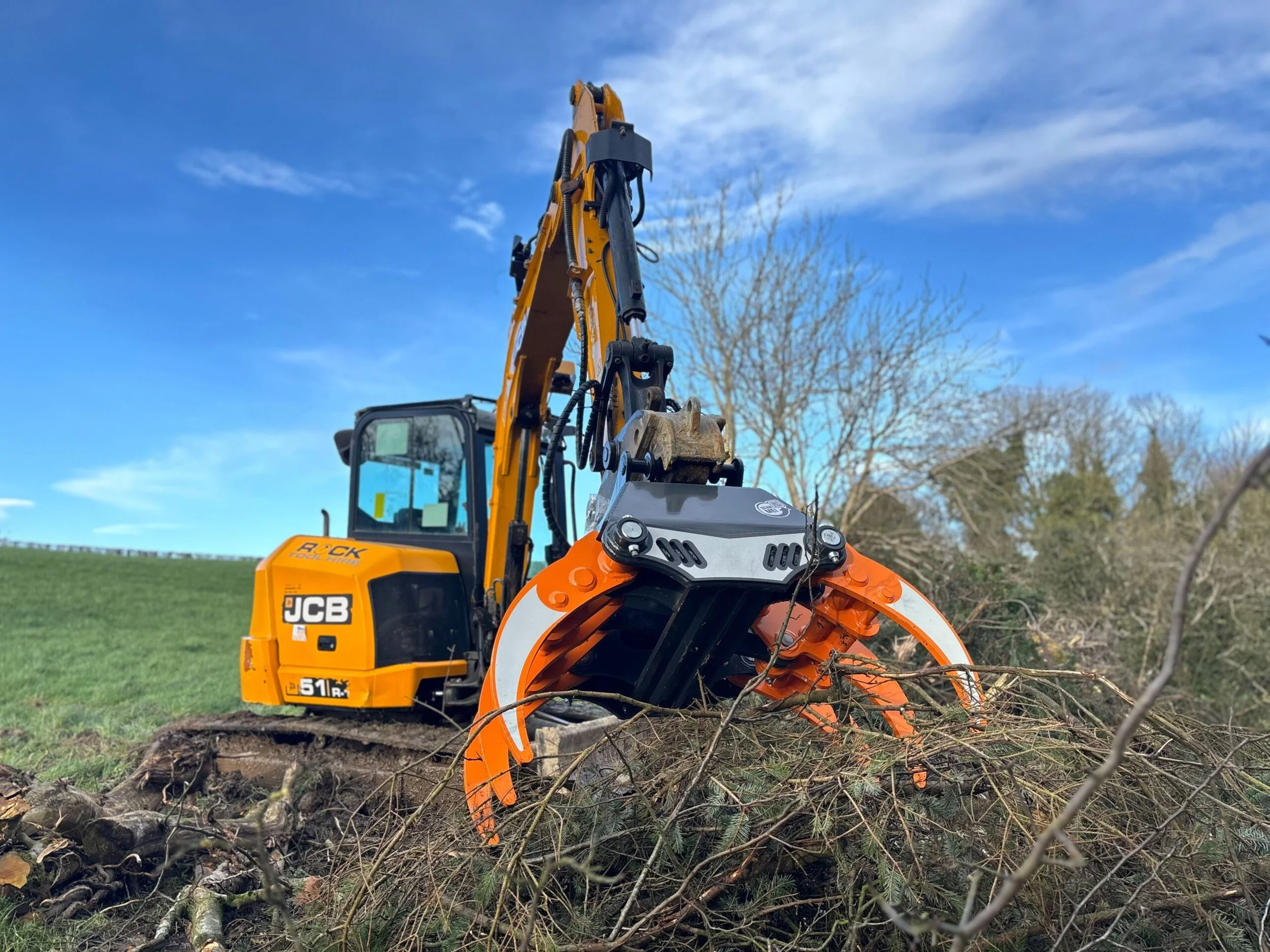

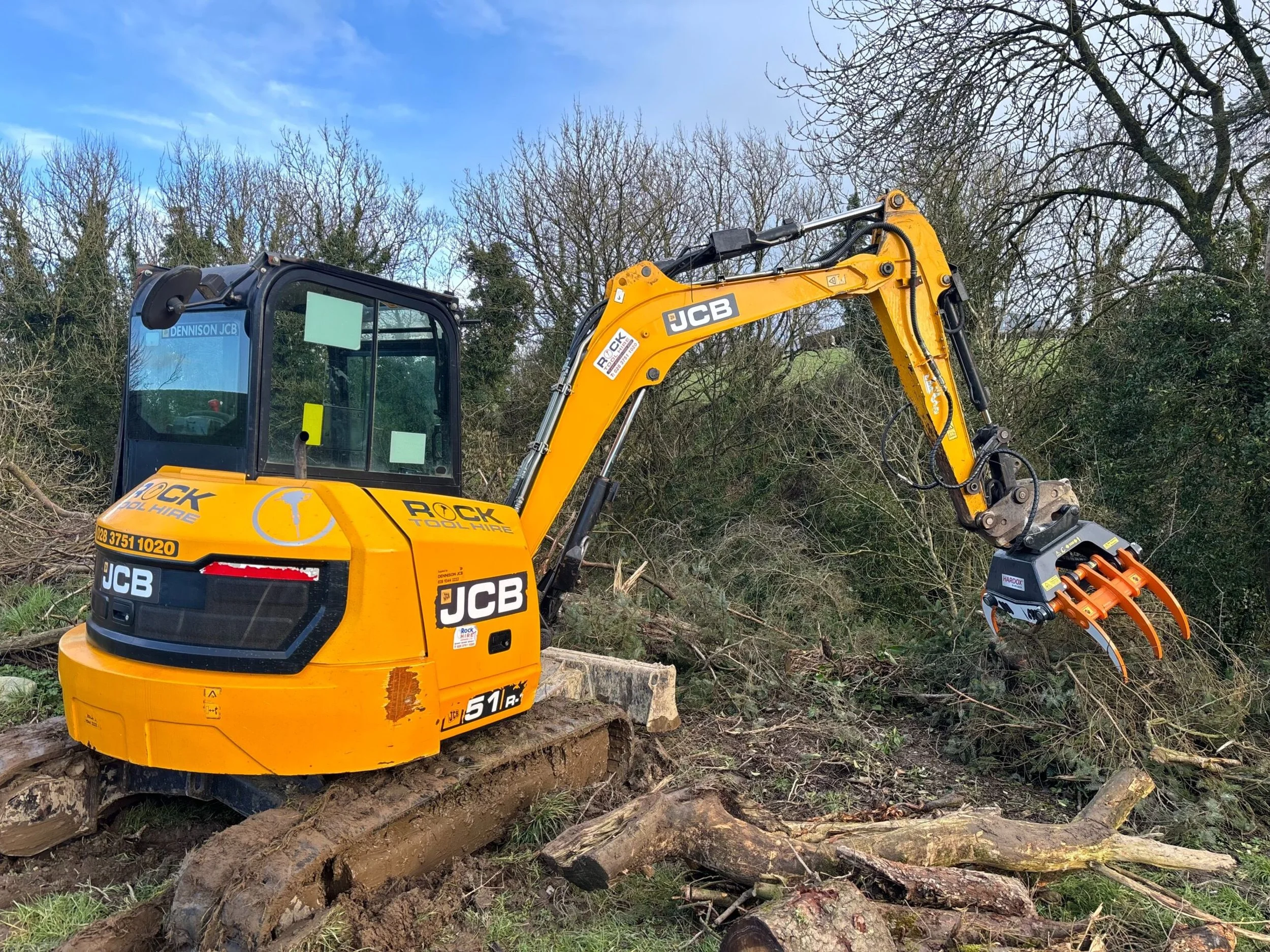

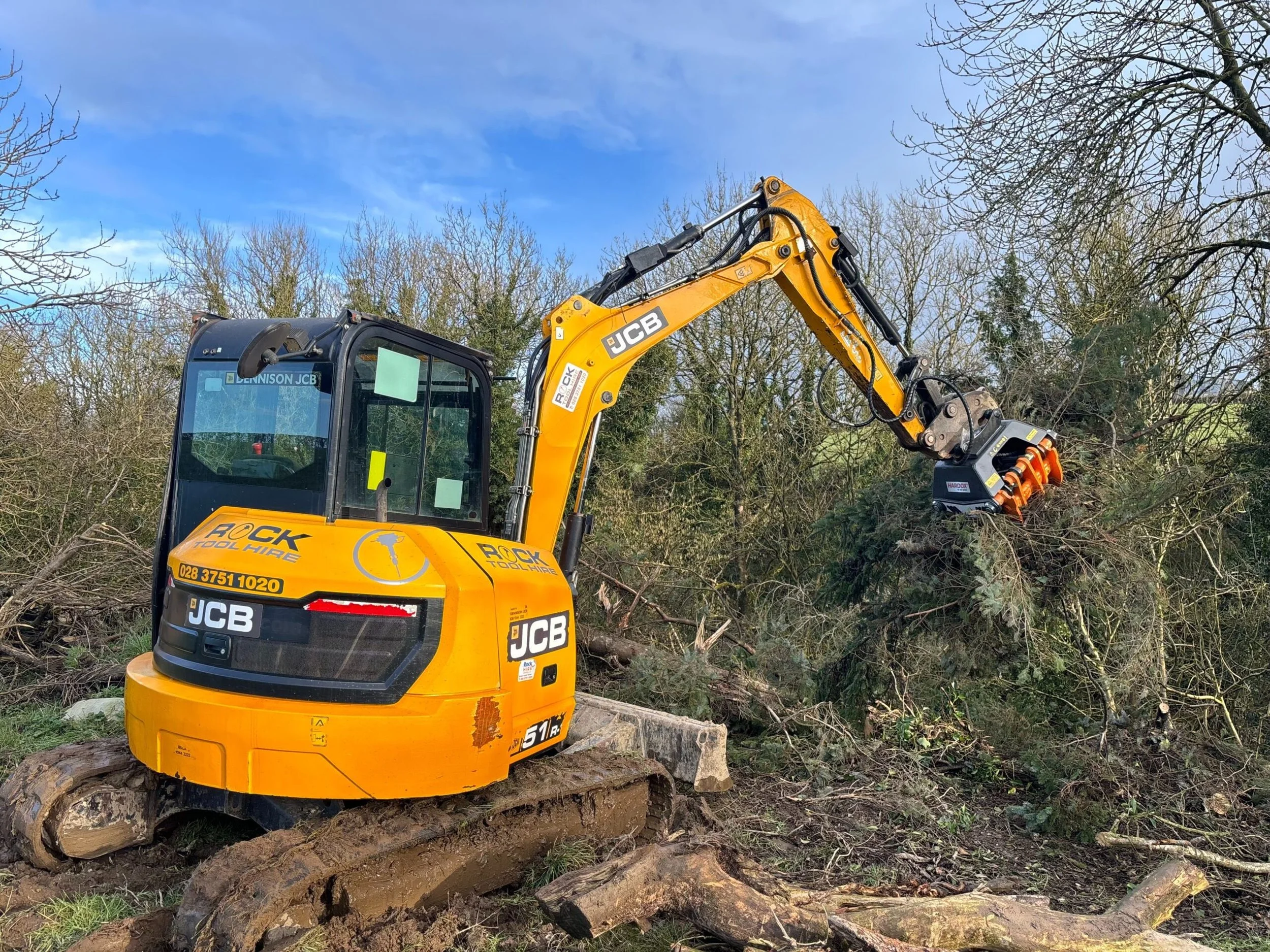

The SX1100 is a valuable addition to any landscaping or construction site, offering excellent gripping power, durability, and versatility. The grapple only needs a supply and return aux hydraulics. The rotator is electric over hydraulic. Specifications Excavators 6t - 7.5t Width 26.3" Height 30.3" Teeth Thickness .78" Grapple Opening 43.3" Grapple Closing 2.75" Weight 530LBS Rotation 360* HOW TO RUN THE GRAPPLE THE BLACK BUTTON DIVERTS THE OIL FLOW TO THE ROTATOR HOLD THE BUTTON DOWN AND NOW USE THE AUX FLOW ON THE JOYSTICK ON THE TRACTOR TO RUN THE ROTATOR LEFT OR RIGHT THE RED STICKER PULLS OFF THE BUTTON SO YOU CAN STICK IT THE OPPOSITE JOYSTICK TO KEEP BOTH HANDS-ON JOYSTICKS DURING OPERATION RELEASE BUTTON TO DIVERT OIL FLOW BACK TO GRAPPLE FUNCTION
