MDE MACHINERY SX850F/SX850MOUNT/SX850ARH50

$14,303.00
sold out

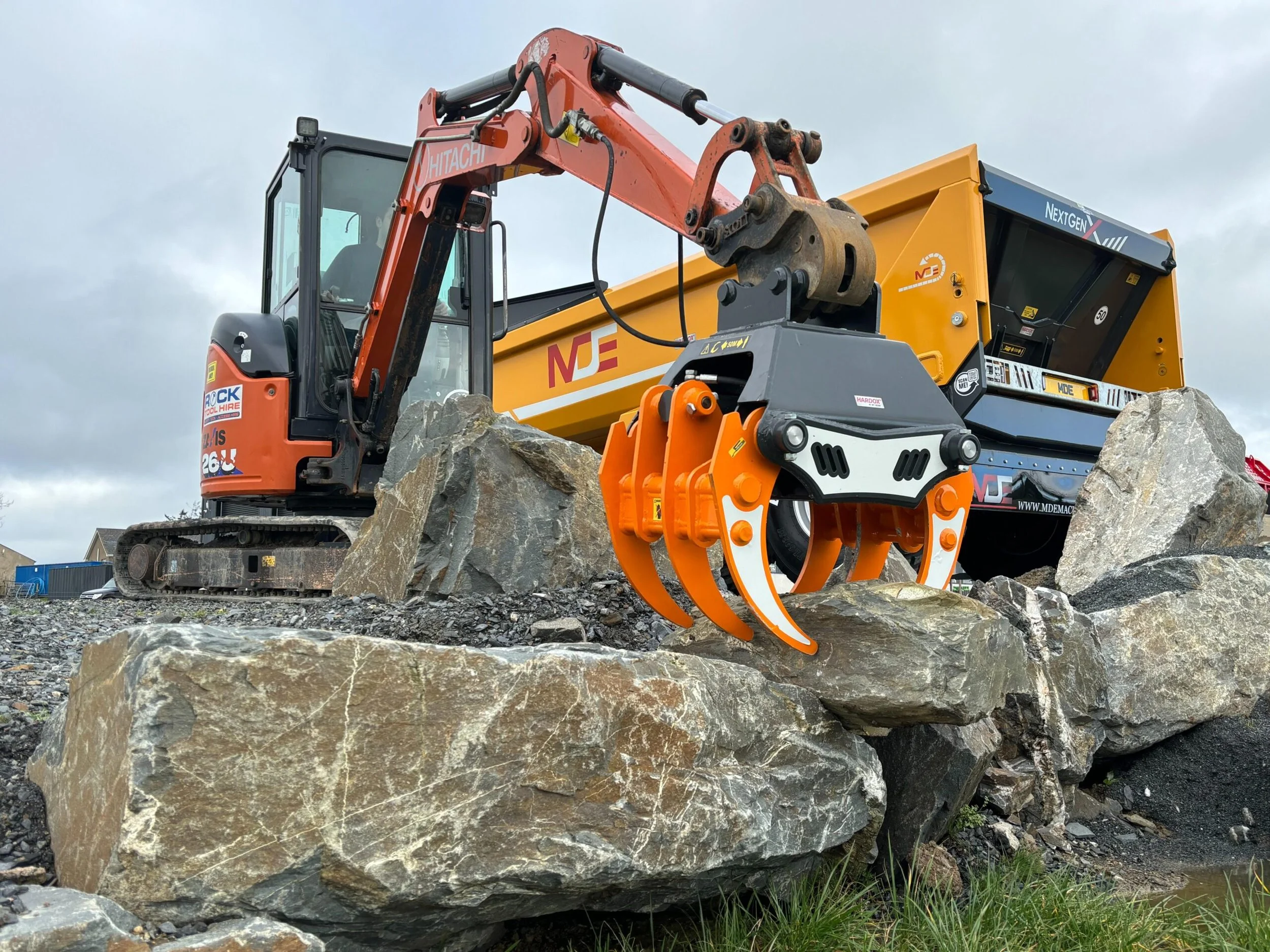

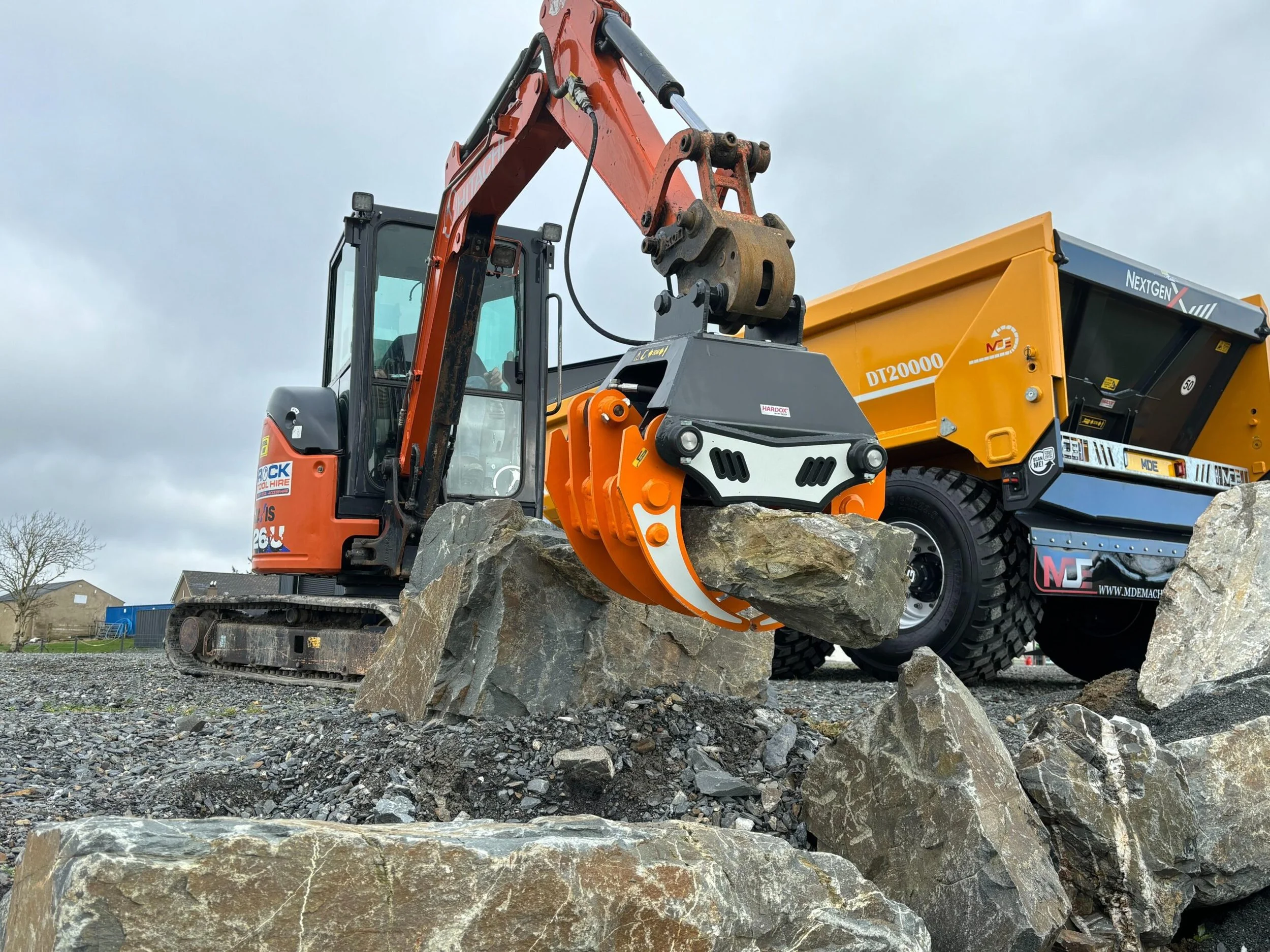

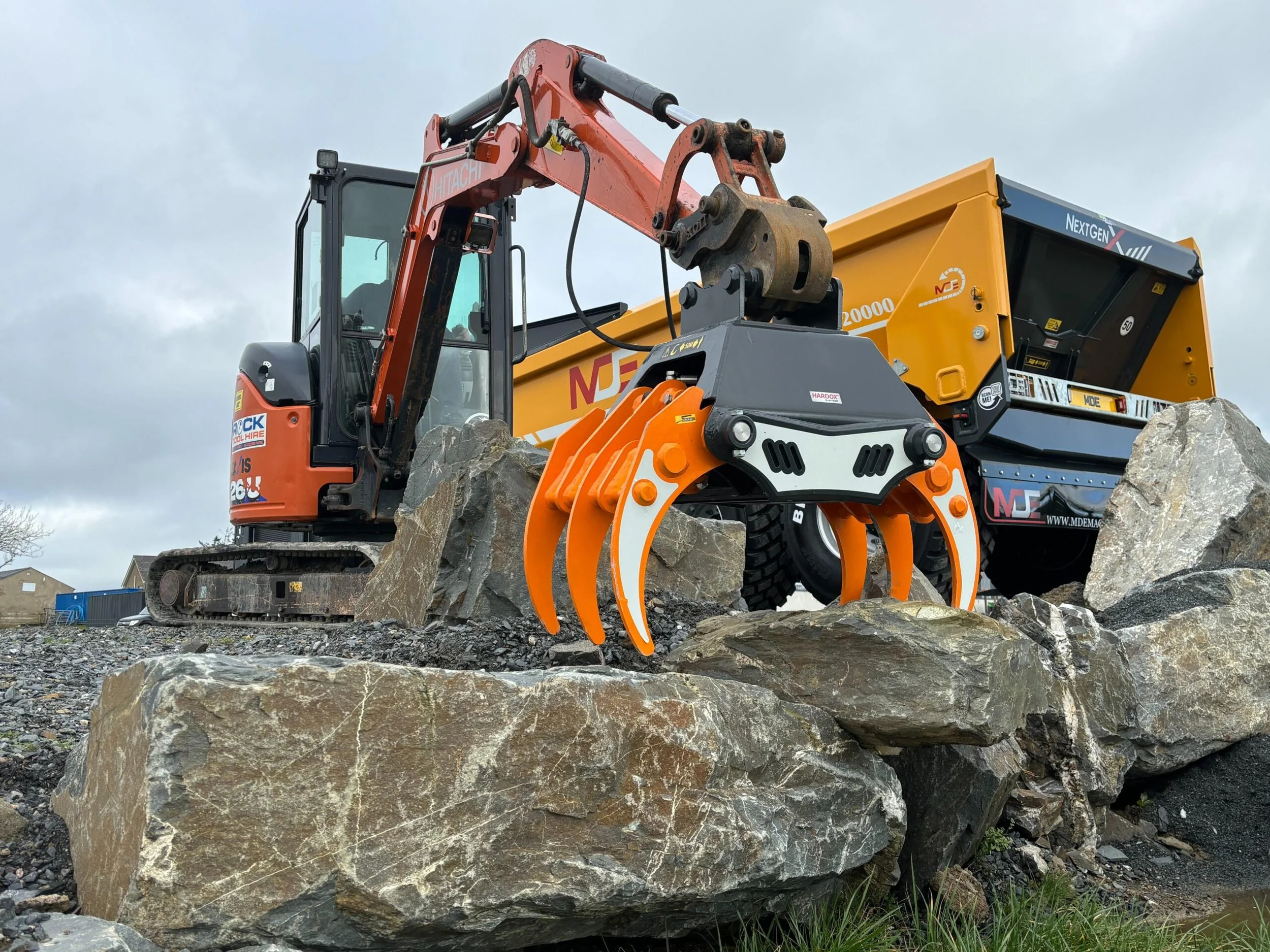

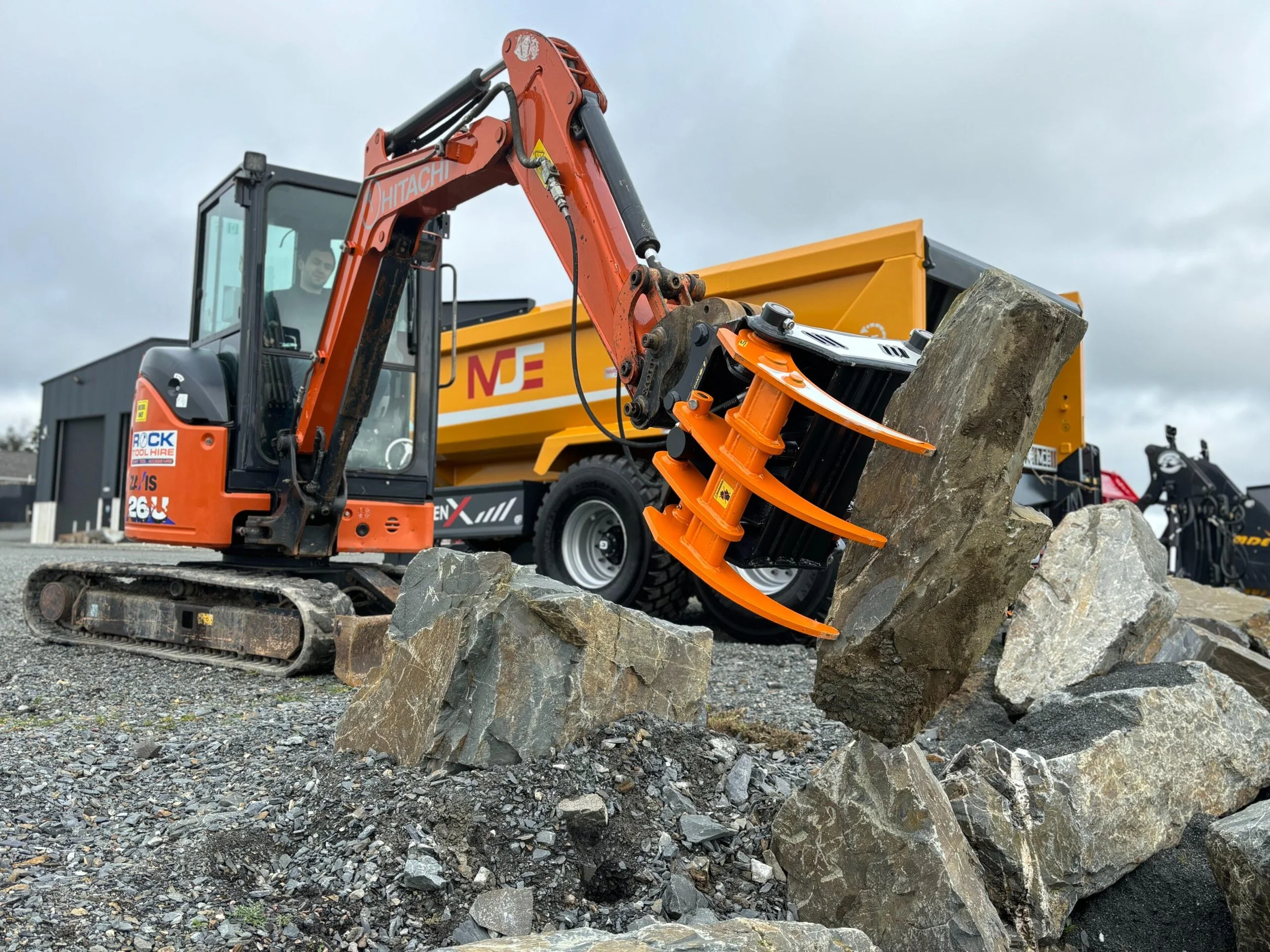

The second smallest grapple in the family. Although small in stature the Scorpion SX850 should never be underestimated, with its powerful gripping force this attachment has no issue holding onto boulders and trees. The grapple only needs a supply and return aux hydraulics. The rotator is electric over hydraulic. Specifications Excavators 3.5t - 5.5t Width 21.25" Height 23.6" Teeth Thickness 15mm Grapple Opening 1/2" Grapple Closing 2.75" Weight 430lbs Rotation 360* HOW TO RUN THE GRAPPLE THE BLACK BUTTON DIVERTS THE OIL FLOW TO THE ROTATOR HOLD THE BUTTON DOWN AND NOW USE THE AUX FLOW ON THE JOYSTICK ON THE TRACTOR TO RUN THE ROTATOR LEFT OR RIGHT THE RED STICKER PULLS OFF THE BUTTON SO YOU CAN STICK IT THE OPPOSITE JOYSTICK TO KEEP BOTH HANDS-ON JOYSTICKS DURING OPERATION RELEASE BUTTON TO DIVERT OIL FLOW BACK TO GRAPPLE FUNCTION
