MDE MACHINERY SX700F/SX700MOUNT/SX700-ARG30-2.3

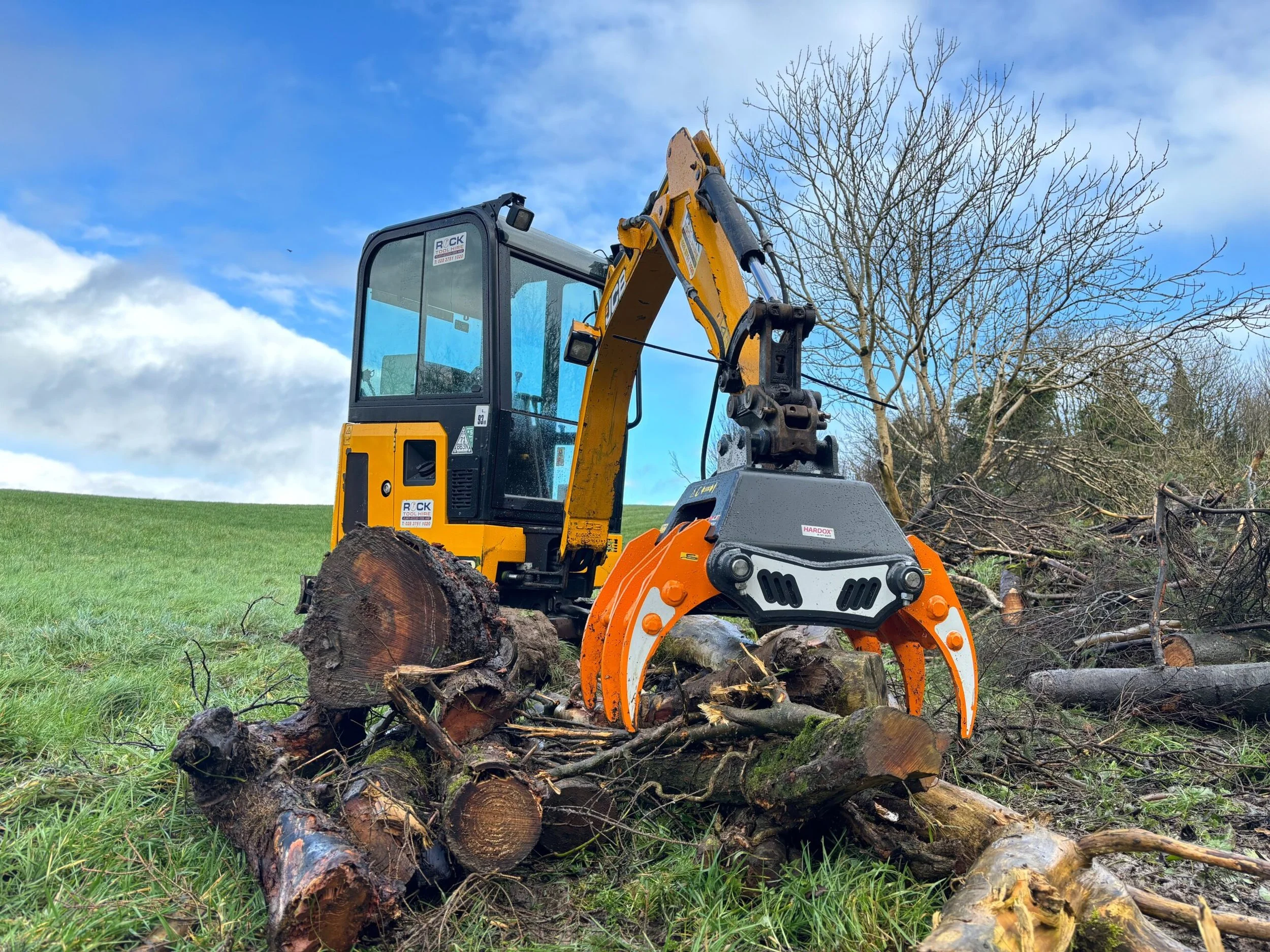

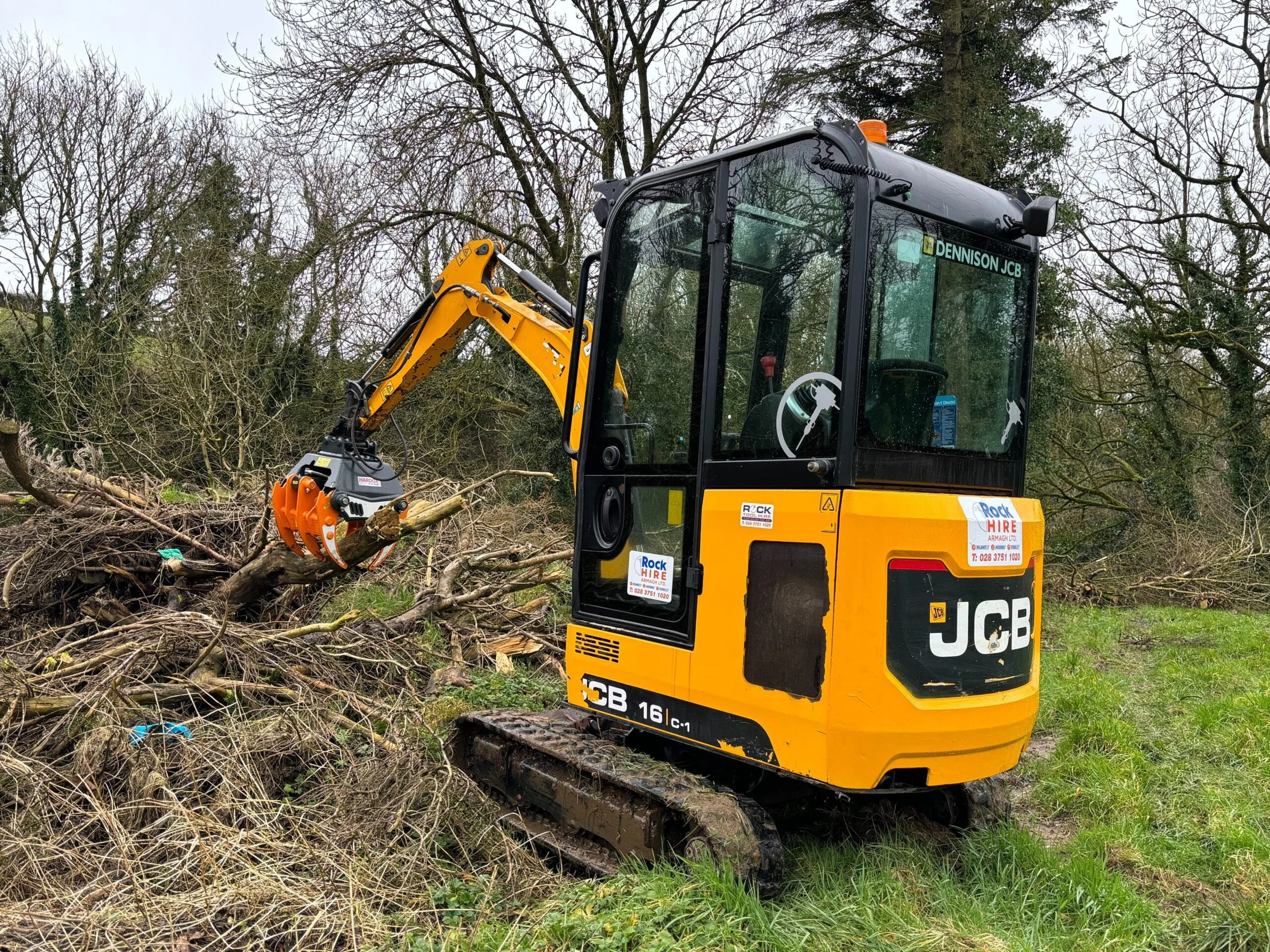

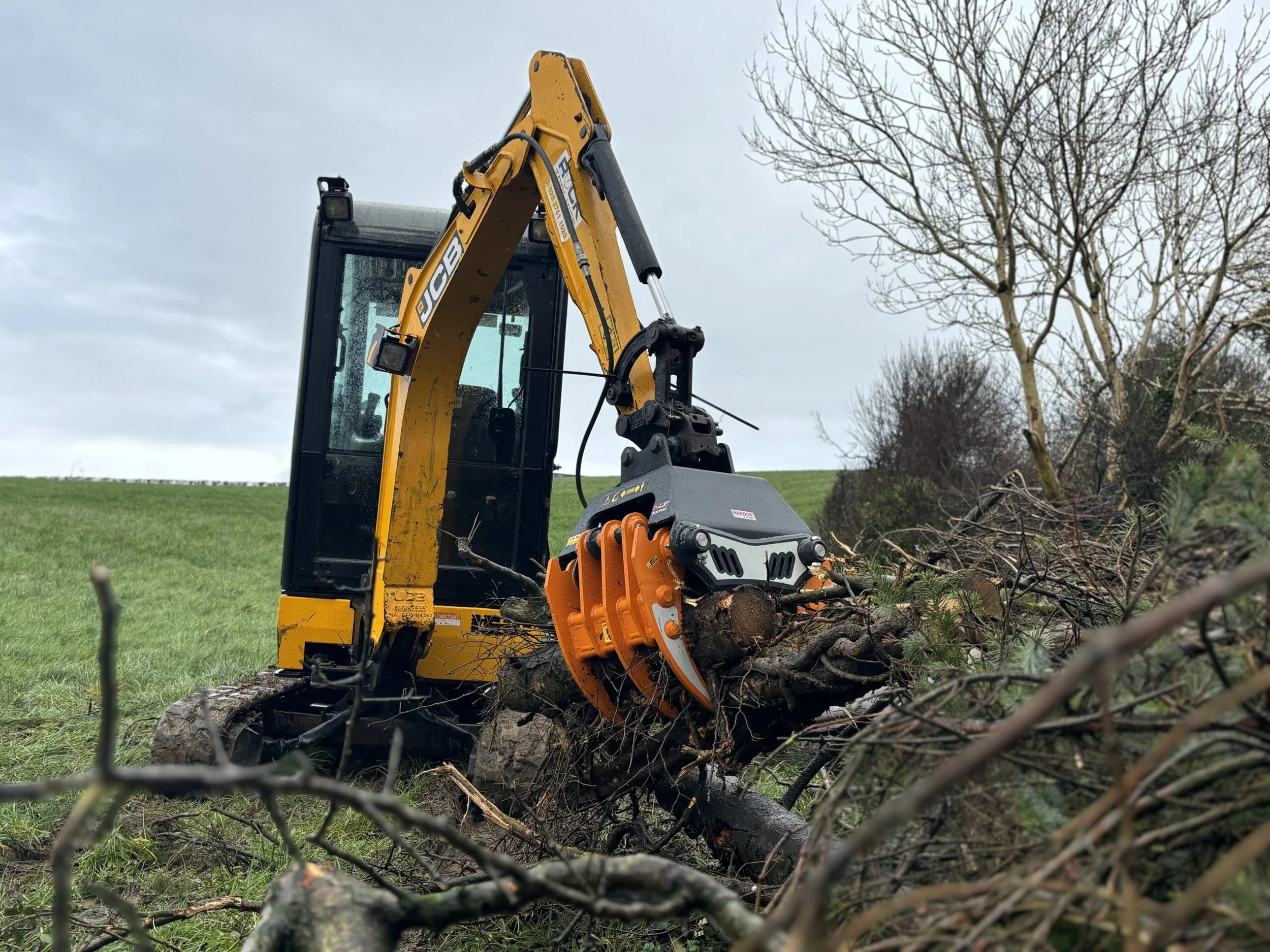

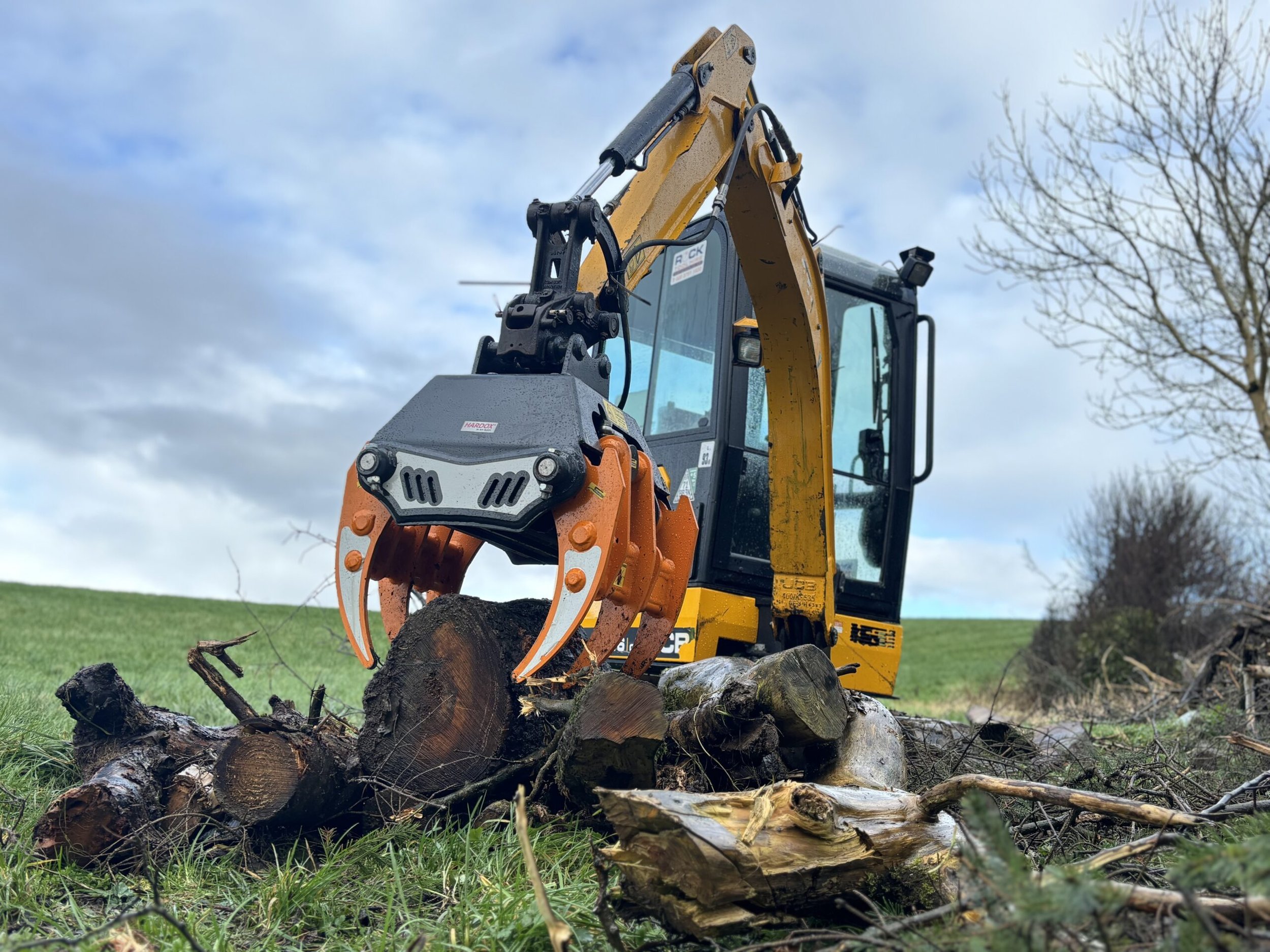

The Scorpion SX700 Grab is designed for small excavators to carryout landscape work, load debris, or load trailers. MDE designed the Scorpion SX700 to be durable, reliable, and easy to use, making it an essential tool in our customers workflow. The grapple only needs a supply and return aux hydraulics. The rotator is electric over hydraulic. Specifications Excavators 1.5t - 3t Width 18.9" Height 20.39" Teeth Thickness .48" Grapple Opening 27.55" Grapple Closing 2.16" Weight 330LBS Rotation 360* HOW TO RUN THE GRAPPLE THE BLACK BUTTON DIVERTS THE OIL FLOW TO THE ROTATOR HOLD THE BUTTON DOWN AND NOW USE THE AUX FLOW ON THE JOYSTICK ON THE TRACTOR TO RUN THE ROTATOR LEFT OR RIGHT THE RED STICKER PULLS OFF THE BUTTON SO YOU CAN STICK IT THE OPPOSITE JOYSTICK TO KEEP BOTH HANDS-ON JOYSTICKS DURING OPERATION RELEASE BUTTON TO DIVERT OIL FLOW BACK TO GRAPPLE FUNCTION
