BAUMALIGHT MP360

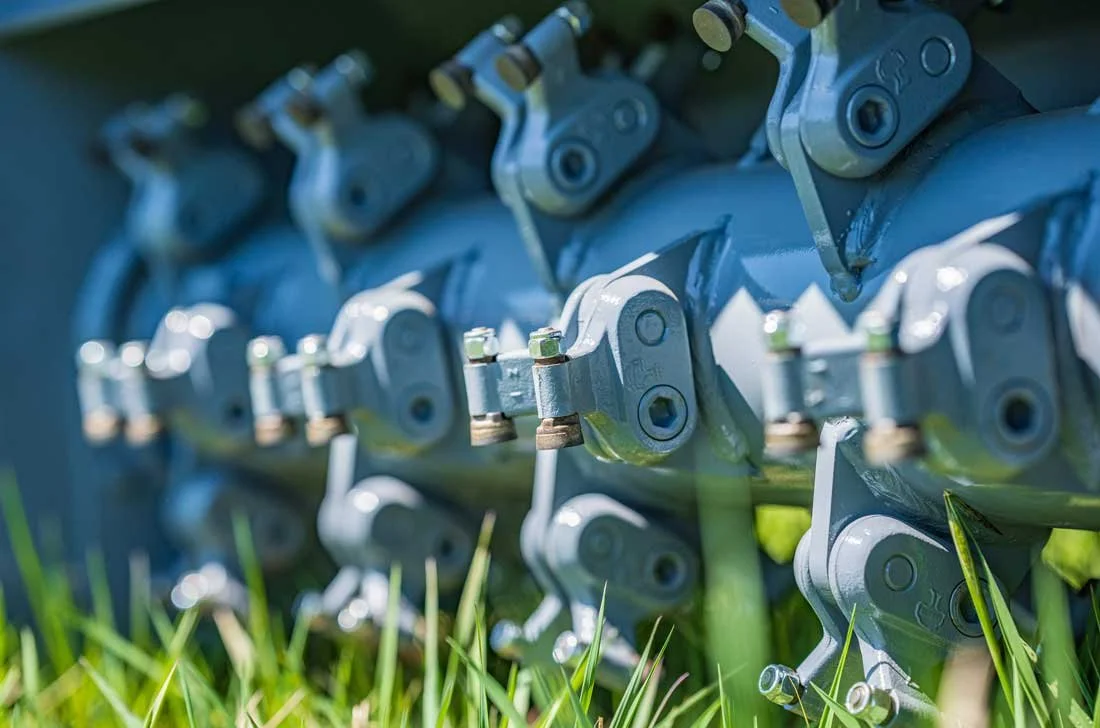

The 300 series is our most light weight fixed tooth brush mulcher for 3-point hitch tractors. With low ground speed the MP360 Brush Fire brush mulcher will efficiently cut heavy vegetation and light brush using Green Teeth. The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is the ease of rotating the teeth so there is always a sharp edge to make mulching easier. Model No. MP348 MP360 MP560 MP572 MP972 Large Shaft to up the HP Path Width 60" 72" 75" 87" 84" D002134 Rotor Width 48" 60" 60" 72" 72" Maximum Engine HP 50 55 75 125 135 90 - 155 PTO Hp Maximum PTO HP 40 45 65 115 125 Do not exceed 165 Engine Hp Minimum Engine HP 25 30 45 50 90 Cutting Depth Level Level 1.5" Above to 1" Below Grade 1.5" Above to 1" Below Grade Level to 2" Below Grade Cutting Style High Speed Teeth High Speed Teeth Carbide Tipped Bolt In Carbide Tipped Bolt In Double Tipped Tooth Part number H3000 H3000 P5000 P5000 R9000 Number of cutters 60 74 92 112 43 Rotor Shaft Size 2" 2" 2" 2" 2" Rotor Diameter (tool tips) 15" 15" 15" 15" 18.5" Rotor Weight (with tools) 230 lbs 315 lbs 575 lbs 700 lbs 1,105 lbs Hitch Size CAT 1 CAT 1 CAT 2 CAT 2 CAT 2 or 3 Quick hitch compatibility Yes Yes No No No No Drive Speed 540 540 540 1,000 1,000 Drive Speed Options 540 (Max Engine HP 110) 540 (Max Engine HP 110) Gearbox Spline Size 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8" Tractor End Spline Size 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1.75" 20 -spline System Protection Slip Clutch Slip Clutch Slip Clutch Slip Clutch Slip Clutch Unit Weight 1050 lbs 1200 lbs 2145 lbs 2500 lbs 3200 lbs Hydraulic Requirements Not Applicable Not Applicable 1 Remote 1 Remote 2 Remotes
