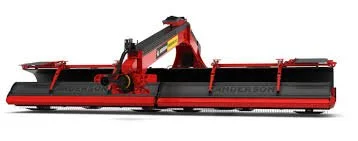

ANDERSON MERGEPRO915

Working width centre swath 30 ft (9.15 m) Working width side swath 25 ft + 5ft swath (7.62 m + 1.52m swath) Swath width centre swath 4,6 ft (1.40m) Swath width side swath with swathboard 3 to 5 ft ( 0,91 to 1.52m) Number of pick-up units 2 Pick-up width (tine-to-tine) 12.5 ft (3.81 m) Transport width 8.3 ft (2.53m) Transport height 11,4 ft (3.47m) Transport length 27.6 ft (8.41 m) Height in transport position (for shipping purpose) 10,4 ft (3.17m) Min power flat ground (12km/h- 8mph) 100 HP Min power flat terrain (28km/h -18mph)** 140 HP Min power all other type of terrain (28km/h-18mph)** 180 HP PTO requirement 1 3/8 Z21 1000 @ 800 RPM Standard configuration (PTO included)n1 3/8 Z6 540 @ 540 RPM compatible (PTO not included) PTO RPM and equivalent optimal working speed 800 RPM (from 0 to 28km/h)n540 RPM (from 0 to 20 km/h) Max working speed 18 mph (28 km/h) Hydraulic 38 GPM @ 800 RPM (133 L/min @ 800 RPM)n26 GPM @ 540 RPM (98 L/min @ 540 RPM) Conveyor belt hydraulic motor High quality Hydraulic Piston Motor Pickup hydraulic motor Hydraulic motor @ 243 RPM @ 28 km/h (18 mph) Oil reservoir capacity 95 US gal (360 L) Oil type TDH Oil Cooling system Standard Tires on transport chassis 560 / 45-22.5 RADIAL Conveyor length 12.8 ft (3.9m) Conveyor width 36 in (0.92 m) Discharge capability right left center Conveyor direction control from tractor cab yes Pickup height 0-3 in ( 7.2 cm) Hitch 2 points Category 2 & 3 Electronic variable pickup speed control from tractor cab Yes Road lights and signaling Yes Required tractor hydraulic connections 2 outlets standard ( 1 for option) Approximate machine weight 5000kg ( 11000lbs) Adjustable skid shoes Standard
