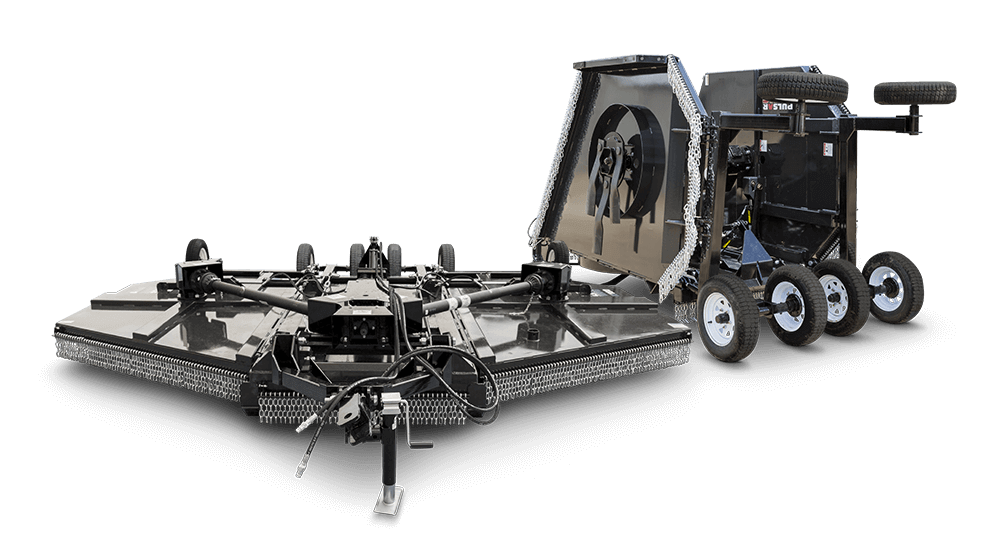

MK Martin presents the Pulsar Wing. Available in a 15' model, the three triple blade assemblies make short work of stubble whether in the pasture, field, or brush. Each wing can independently float 20° in either direction to conform to the contours of the ground. The 15' width of the cutter can be greatly reduced by folding up both hydraulic wings to better transport from one field to another, and to store the cutter in tight spaces. Features & Options 15' dual wing rotary cutter 4 heavy duty gearboxes, each covered with limited 5 year warranty Transport lock for each wing 1.5" diameter cutting capacity Shipping Weight (LBS.) 4,400 3PH Mount Draw Bar Hitch Cutting Height 3"-15" Cutting Path 180" Max Brush Diameter 1.5" Overall Width (Wings Down) 184" Folded Width (Wings Up) 78" Tip Speed (Ft/Min) 15,100 ft/min on Wings 14,850 ft/min on center Wheels (Pneumatic) 21" Blades 9 blades 1/2"x4" Tractor HP (min) 75HP PTO RPM 540 Gearbox Rating (Wing) 140 HP Gearbox Rating (Center) 105 HP Gearbox Rating (Divider) 87 HP Deck 3/16" Stump Jumper Yes Protection Independent Slip Clutch on Each Spindle
MK Martin presents the Pulsar Wing. Available in a 15' model, the three triple blade assemblies make short work of stubble whether in the pasture, field, or brush. Each wing can independently float 20° in either direction to conform to the contours of the ground. The 15' width of the cutter can be greatly reduced by folding up both hydraulic wings to better transport from one field to another, and to store the cutter in tight spaces. Features & Options 15' dual wing rotary cutter 4 heavy duty gearboxes, each covered with limited 5 year warranty Transport lock for each wing 1.5" diameter cutting capacity Shipping Weight (LBS.) 4,400 3PH Mount Draw Bar Hitch Cutting Height 3"-15" Cutting Path 180" Max Brush Diameter 1.5" Overall Width (Wings Down) 184" Folded Width (Wings Up) 78" Tip Speed (Ft/Min) 15,100 ft/min on Wings 14,850 ft/min on center Wheels (Pneumatic) 21" Blades 9 blades 1/2"x4" Tractor HP (min) 75HP PTO RPM 540 Gearbox Rating (Wing) 140 HP Gearbox Rating (Center) 105 HP Gearbox Rating (Divider) 87 HP Deck 3/16" Stump Jumper Yes Protection Independent Slip Clutch on Each Spindle
