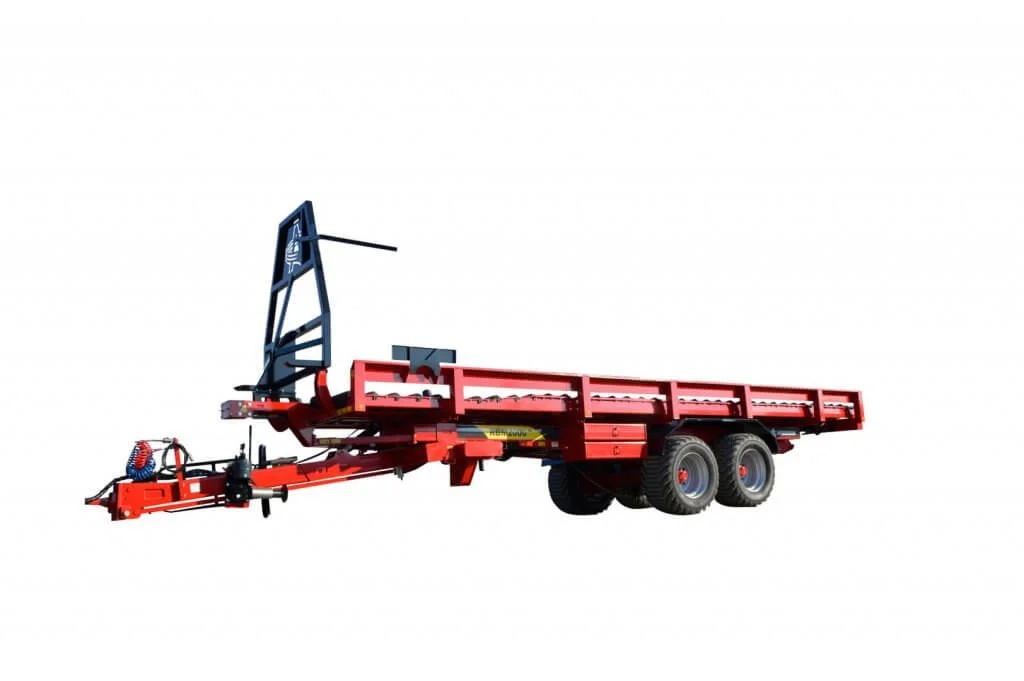

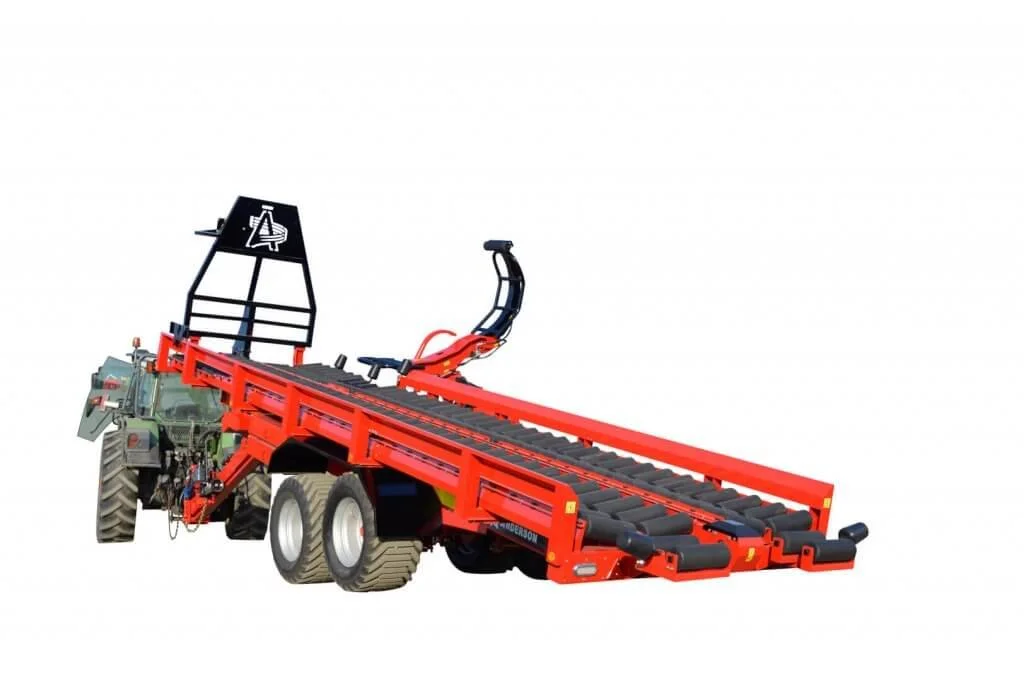

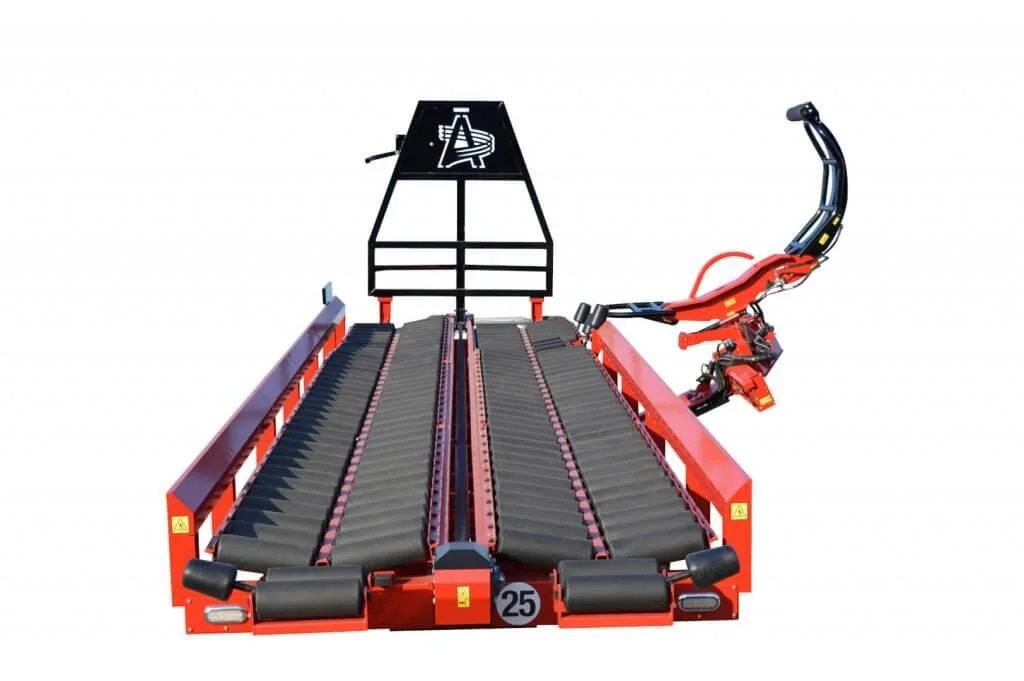

ANDERSON RBM PRO 2000 (WITH BRAKES)

Round bale diameter Up to 5 ft (1,5 m) Square bale n/a Bale type Baleage/dry hay/straw/ Wrapped bale (min. 6 layers of film) Tandem axle Standard Tandem axle with brakes Optional Self-Steering axle with brakes Optional Safety chain Standard Self-loading arm design Hydraulic clamp Able to load a second row of bales Telescopic arm Tires 550/45-22,5 Caméra (de recul) Standard Tractor minimum hydraulic flow 2800 psi (190 bar) HP requirements 130 HP Double hydraulic connections required 3 + LS PTO Speed/ PTO shaft N/A Controls Touchscreen display Width – A 8 ft 4 in (2,55 m) Overall width (inlcuding loading arm) 8 ft 4 in (2,55 m) Height – B 12 ft 2 in (3.71m) Overall height (inlcuding loading arm) 12 pi 6 po (3.81m) Bed height - E 5 pi (1,55 m) Overall length – D 38 pi 5 po (11,76 m) Overall weight 14 990 lb (6800 kg) Empty Weight on tow bar*** 3415 lb (1550 kg) Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) In 2 rows = 14nIn 3 rows = 19 or 20 Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) In 2 rows = 14nIn 3 rows = 19 or 20 Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) n/a Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) In 2 rows = 12nIn 3 rows = 16 or 17 Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) n/a Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m) n/a Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m) n/a Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m) n/a Loading arm lifting capacity 2500 lb (1135 kg) Total weight including load 42 000 lb (19 000 kg) Champ-1
