BAUMALIGHT MX960R-D97X2/D000025

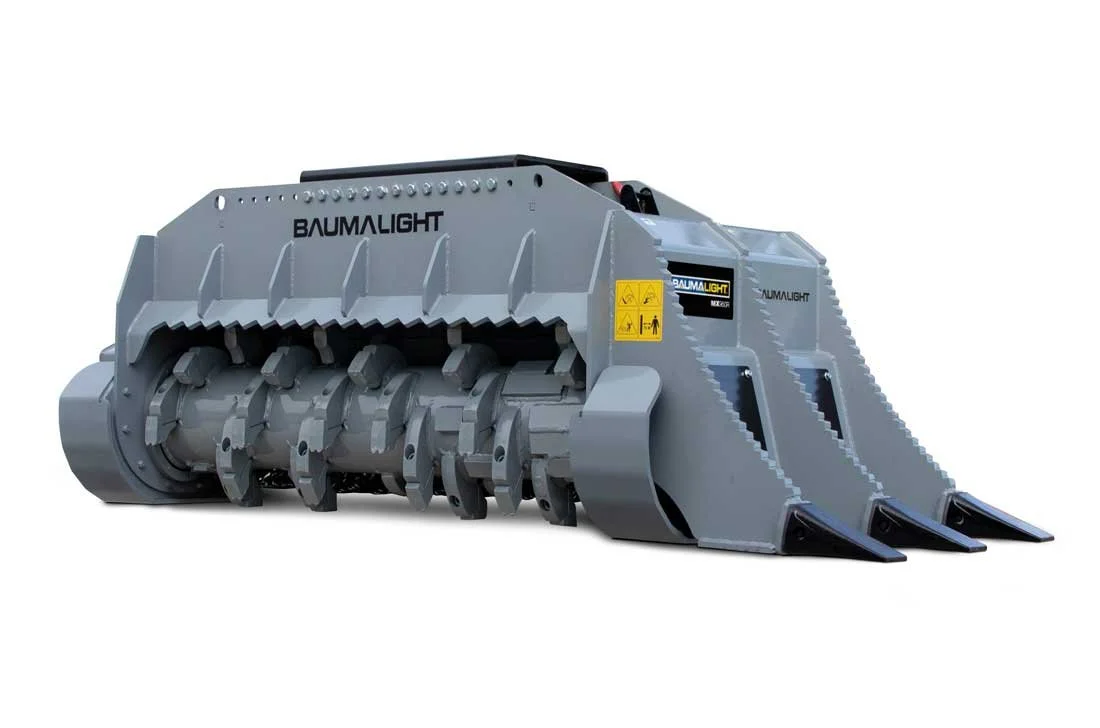

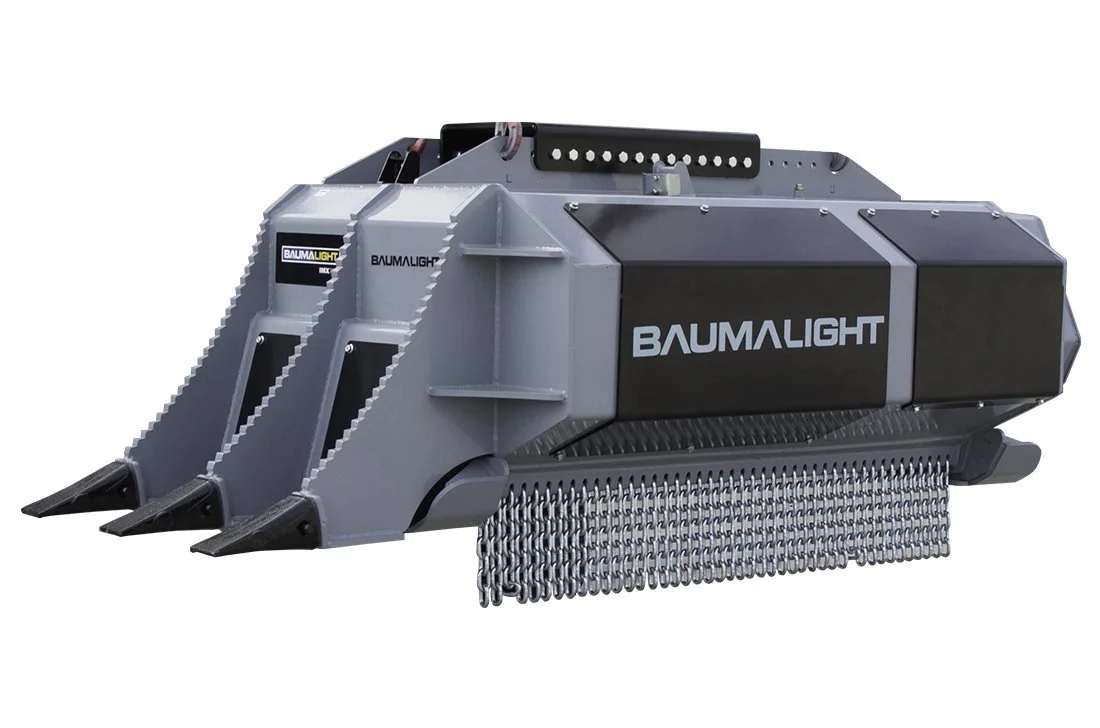

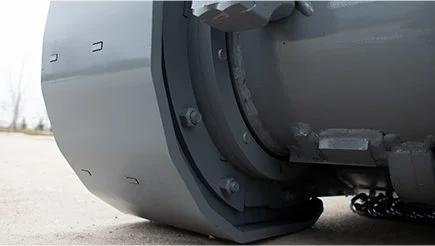

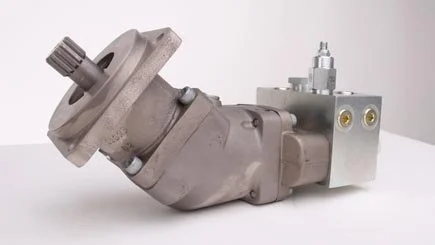

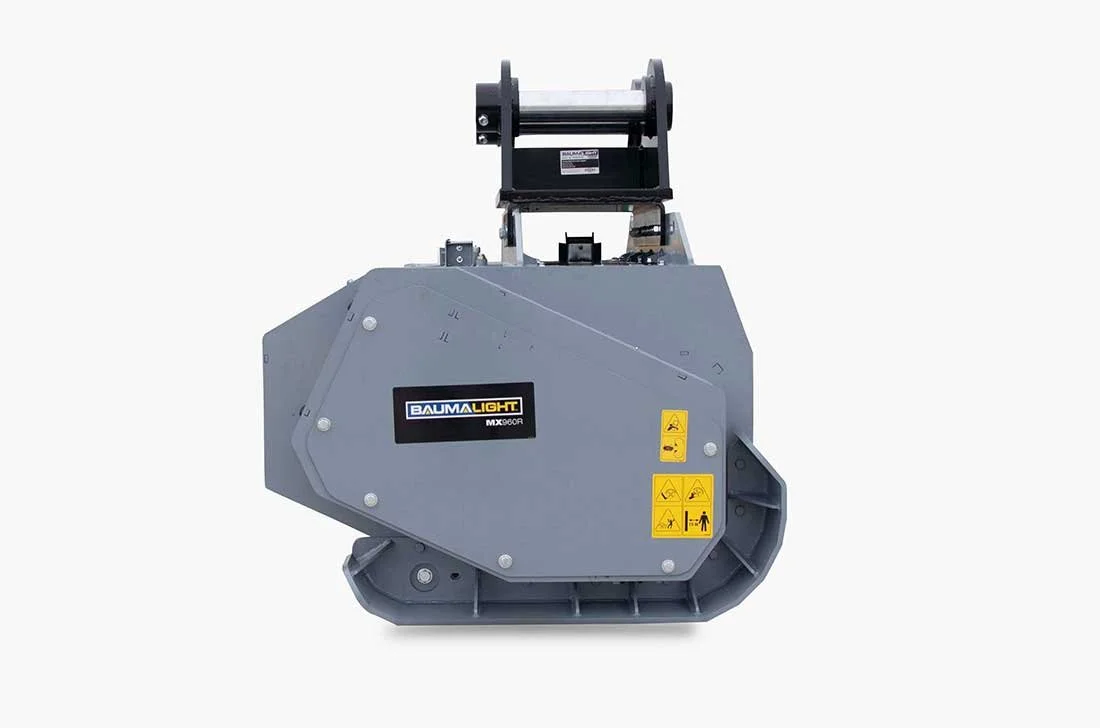

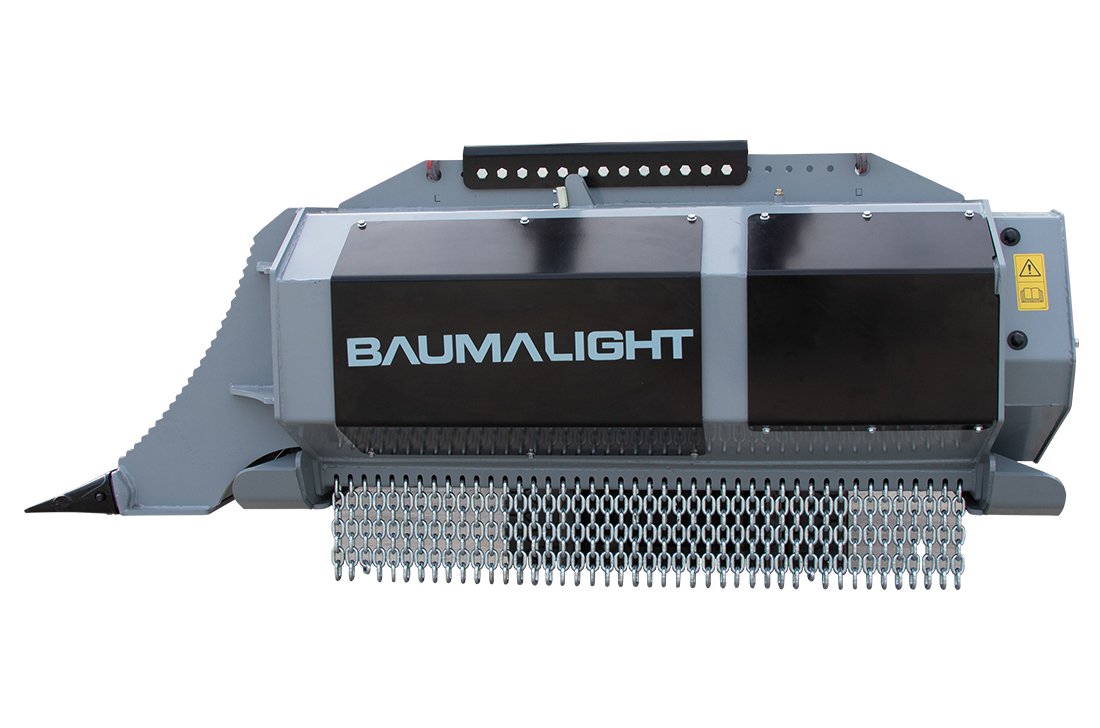

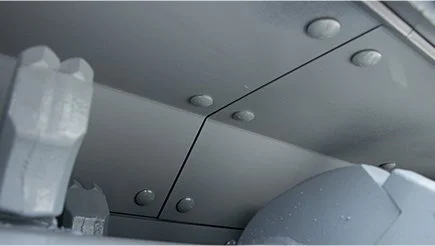

The Baumalight MX960R Brush Mulcher has a 60” rotor and is designed for excavators starting at 18 ton up to 33 tons. The MX960R uses a fixed tooth holder comes with heavy duty double carbit tipped teeth (R9000), these teeth are ideal for vegetation management with lots of ground contact and don’t mind the occasional stone. Powered by a piston motor like all of the larger Baumalight mulchers the MX960R comes with aggressive root rake ripper teeth build into the frame to rip out rocks and move logs. The unit also has a heavier duty body, built with a low-weight, high-strength AR400 steel and is equipped with replaceable body wear plates. Model No. MX230 MX330 MX530 MX530R MX548R MX948R MX960R MX1160R Baumalight Connection Code A02 A02 A02 A02 A03 A03 A03 A03 Path Width 38" 38" 40" 40" 62" 70" 90" 90" Rotor Width 30" 30" 30" 30" 48" 48" 60" 60" Minimum Tracked Excavator Ton 2 3 4 4 7 12 18 18 Minimum Wheeled Excavator Ton 4 5 6 6 9 15 21 21 Max Tracked Excavator Ton 6 8 12 12 20 30 33 33 Max wheeled Excavator Ton 8 10 14 14 22 33 36 36 Cutting Depth Level Level 1.5" Above to 1" Below Grade 1.5" Above to 1" Below Grade 1.5" Above to 1" Below Grade Level Level Level Holder Style Swing Fixed Fixed Fixed Fixed Fixed Fixed Fixed Cutting Style Flail High Speed Teeth Carbide Tipped Bolt In Carbide Tipped Bolt In Carbide Tipped Bolt In Double Tipped Carbide Double Tipped Carbide Sharpenable Planer teeth Tooth Part number F2000 H3000 P5000 P5000 P5000 R9000 R9000 P11000 Number of cutters 22 36 44 44 72 27 38 31 Rotor Shaft Size 1.5" 2" 2" 2" 2" 2" 2" 2" Rotor Diameter (tool tips) 17.25" 15" 15" 15" 15" 18.5" 18.5" 18.5" Rotor Weight (with tools) 125 lbs 175 lbs 300 lbs 300 lbs 408 lbs 617 lbs 860 lbs 872 lbs No. of Motor 1 1 1 1 1 1 1 1 Case Drain Not important Not important See motor options See motor options Critical Critical Critical Critical Unit Weight 500 lbs 750 lbs 1036 lbs 1166 lbs 2167 lbs 2838 lbs 2910 lbs 2925 lbs
