BAUMALIGHT SS330-D001261

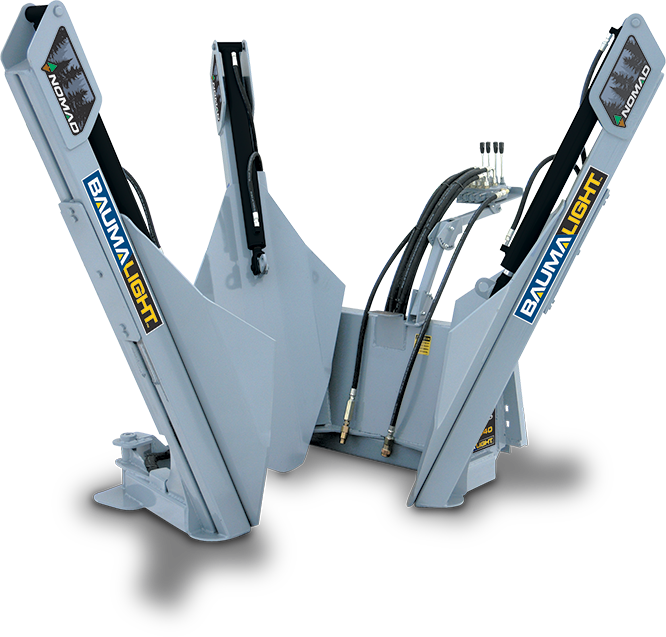

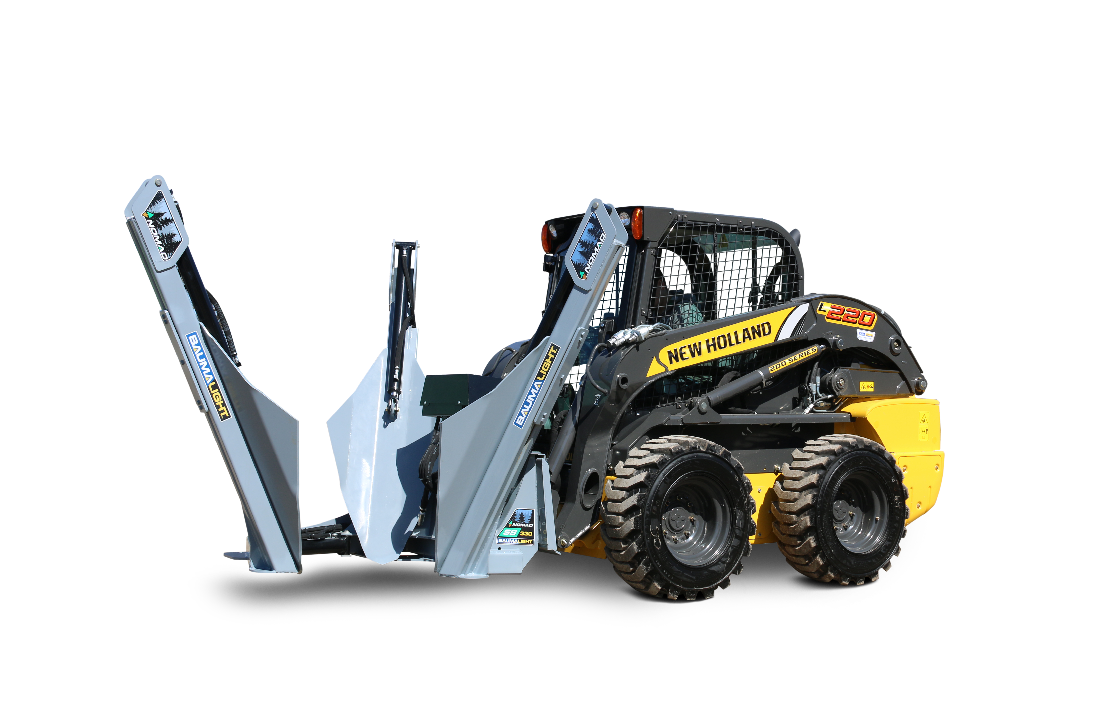

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers. Model Standard mount Universal skidsteer Universal skidsteer Universal skidsteer Universal skidsteer Warning Universal skidsteer Universal skidsteer Tree Size (Evergreen) 3" 3" 3" 4" 5" 5" Tree Size (Hardwood) 1.5" 2.5" 2.5" 3" 4" 4" Root Ball Diameter 24" 30" 30" 40" 50" 44" Root Ball Depth 23" 29" 29" 30" 43" 31" Opening (Width) 20" 23" 60" 52" 47" 27" Blade Angle (Degrees) 25° 25° 25° 25° 25° 25° Number of Blades 3 3 3 4 6 4 Blade Thickness 1/4" Mild Steel 3/8" Mild Steel 3/8" Mild Steel 1/4" AR400 1/4" AR400 5/16" T1 Slides Steel Steel Steel Steel Steel Nylon Blade Truncation Semi Semi Semi Full Semi Semi Towers Swing Hinge No No Yes Yes Yes Yes Hydraulic Flow 5-20 (GPM) 5-20 (GPM) 5-20 (GPM) 5-20 (GPM) 5-20 (GPM) 5-25 (GPM) Hydraulic Pressure 2900-4000 (PSI) 2900-4000 (PSI) 2900-4000 (PSI) 2900-4000 (PSI) 2900-4000 (PSI) 2900-4000 (PSI) Weight 1100 1356 1550 1934 3238 2950 Weight with Root Ball 1400 1865 2050 3134 5785 4150
