BAUMALIGHT 1P24/D005735

$2,746.01
sold out

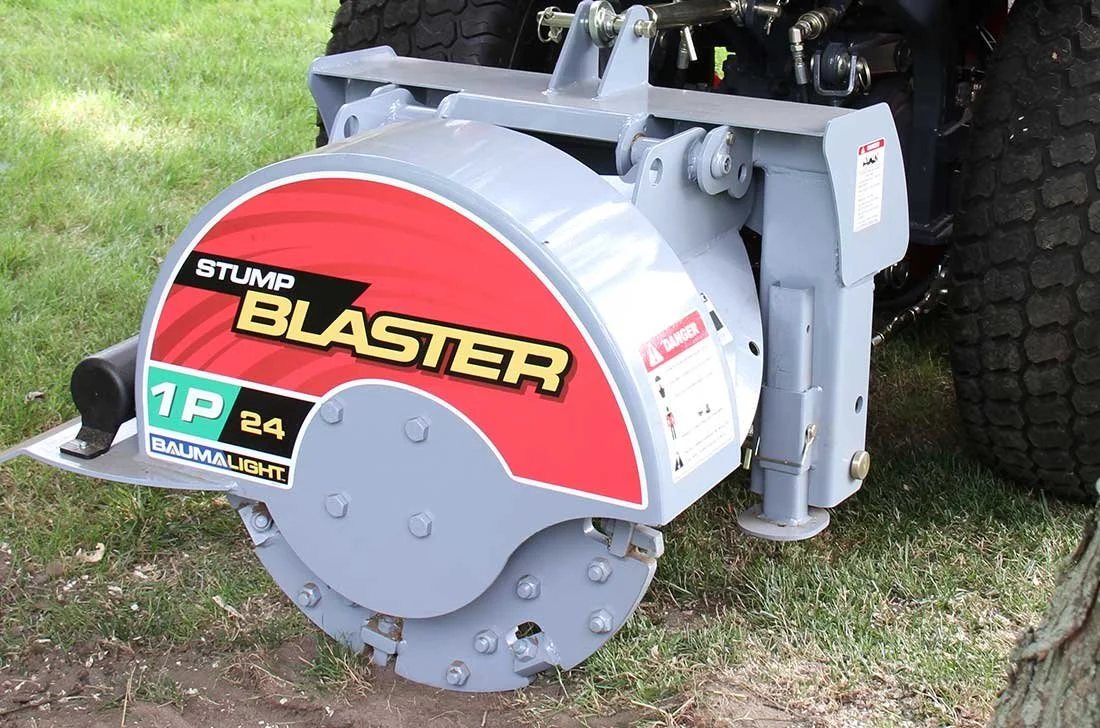

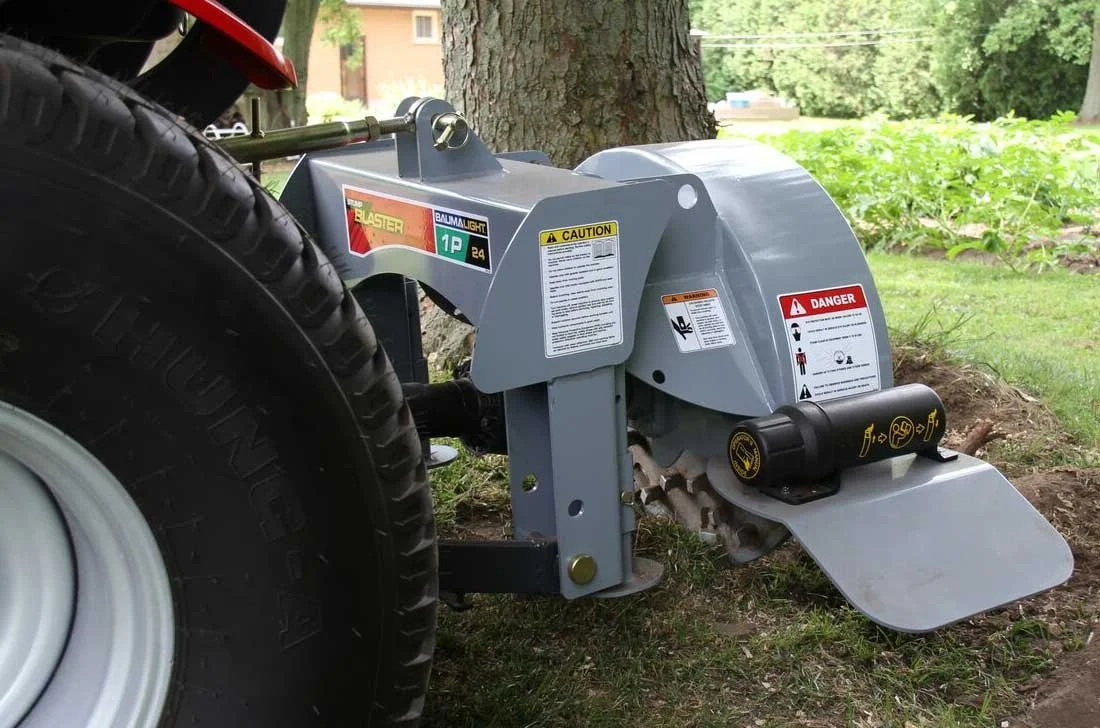

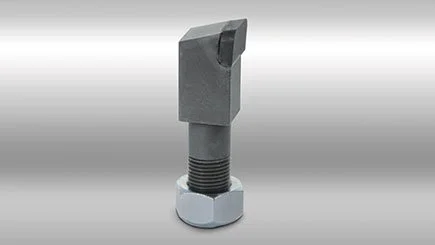

The 1P24 PTO stump grinder is designed for small tractors equipped with hydrostatic drive and Category 1 3PH. This tractor mounted stump grinder model allows you to grind small and midsized stumps efficiently with a 24" Rotor, carrying 34 replaceable carbide teeth and has a cutting depth of 10" above ground and 6" below ground. With no hydraulics required this versatile PTO Stump Grinder is controlled with gravity feed which is ideal for tractors with no hydraulic remotes. All Baumalight stump grinders are made in North America and sold through dealers so you always will have local support to service or support your stump grinder. Model No. 1P24 3P24 3P34 3P40 Recommended HP Size 20-45 25-55 45-80 60-120 Maximum Engine HP 50 58 85 125 Maximum PTO HP 40 50 75 115 Transmission Hydrostatic only Any Any Any Hydraulic GPM -- 5–20 5–20 5–20 Rotor Size 24" 24" 34" 34" Number of Teeth 34 34 54 54 Tooth Part number S1000 S1000 S1000 S1000 Tooth Construction Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Cutting Wheel Speed 540 RPM 810 RPM 810 RPM 1000 RPM Cutting Height - Above Ground 10" 18" 25" 25" Cutting Depth - Below Ground 6" 8" 14" 14" Maximum Cutting Depth - Per Pass 5" 6" 9" 9" Maximum Horizontal Cut 22" 22" 32" 32" Swing Arc 0° 65° 65° 65° Hub Torque 803 Ft.-Lbs. 803 Ft.-Lbs. 803 Ft.-Lbs. 1050 Ft.-Lbs. Over Torque Protection Slip clutch Slip clutch Slip clutch Slip clutch Hitch Cat I Cat I or II Cat II Cat II Quick hitch compatibility Yes No No No No. of Remotes Required - Hydraulic 0 1 or 2 1 or 2 1 or 2 Requires 12 Volt DC No No No No Input Speed 540 540 540 1000 Unit Weight (Shipping) Lbs. 350 920 1231 1280 Width (Shipping) 48" 42" 48" 48" Length (Shipping) 48" 49" 54" 54"
