BAUMALIGHT MX1160R-C1170/D000025

$35,701.00
sold out

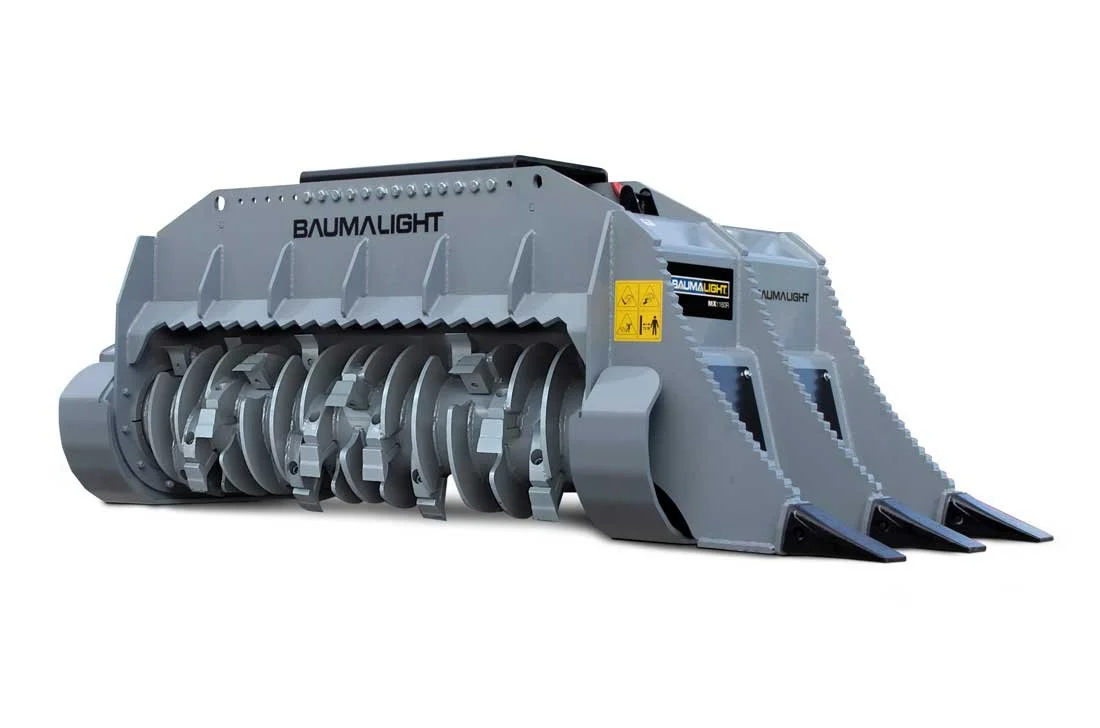

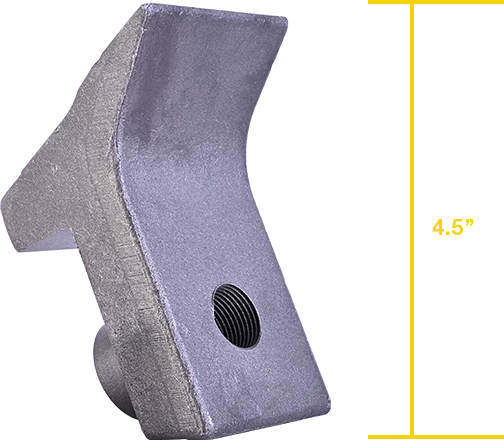

MX1160R Heavy Duty Fixed Tooth Mulcher for Excavator, 18 to 33 Ton The Baumalight MX1160R Brush Mulcher has a 60” rotor and is designed for excavators up to 33 tons. The MX1160R comes with unique performance boosting mulcher rings (licensed by Denis Cimaf). These rings improve the speed and efficiency of your mulching while reducing the risk of breakage on the tooth holders by limiting the size of the bites. The MX1160R uses a fixed tooth holder and comes with 31 sharpenable planer teeth (P11000), as you will see in the brush cutting size charts this allow mulching of much larger material with an average carrier. The MX1160R comes with aggressive root rake ripper teeth build into the frame to rip out rocks and move logs. The unit also has a heavier duty body, built with a low-weight, high-strength AR400 steel. Model No. MX230 MX330 MX530 MX530R MX548R MX948R MX960R MX1160R Baumalight Connection Code A02 A02 A02 A02 A03 A03 A03 A03 Path Width 38" 38" 40" 40" 62" 70" 90" 90" Rotor Width 30" 30" 30" 30" 48" 48" 60" 60" Minimum Tracked Excavator Ton 2 3 4 4 7 12 18 18 Minimum Wheeled Excavator Ton 4 5 6 6 9 15 21 21 Max Tracked Excavator Ton 6 8 12 12 20 30 33 33 Max wheeled Excavator Ton 8 10 14 14 22 33 36 36 Cutting Depth Level Level 1.5" Above to 1" Below Grade 1.5" Above to 1" Below Grade 1.5" Above to 1" Below Grade Level Level Level Holder Style Swing Fixed Fixed Fixed Fixed Fixed Fixed Fixed Cutting Style Flail High Speed Teeth Carbide Tipped Bolt In Carbide Tipped Bolt In Carbide Tipped Bolt In Double Tipped Carbide Double Tipped Carbide Sharpenable Planer teeth Tooth Part number F2000 H3000 P5000 P5000 P5000 R9000 R9000 P11000 Number of cutters 22 36 44 44 72 27 38 31 Rotor Shaft Size 1.5" 2" 2" 2" 2" 2" 2" 2" Rotor Diameter (tool tips) 17.25" 15" 15" 15" 15" 18.5" 18.5" 18.5" Rotor Weight (with tools) 125 lbs 175 lbs 300 lbs 300 lbs 408 lbs 617 lbs 860 lbs 872 lbs No. of Motor 1 1 1 1 1 1 1 1 Case Drain Not important Not important See motor options See motor options Critical Critical Critical Critical Unit Weight 500 lbs 750 lbs 1036 lbs 1166 lbs 2167 lbs 2838 lbs 2910 lbs 2925 lbs
