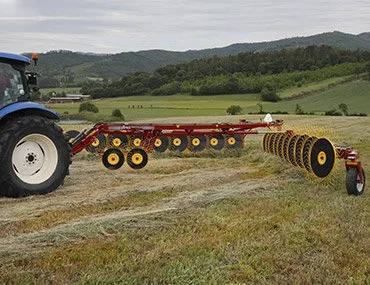

SITREX 802.929

$0.00
sold out
Number Of Finger Wheels 20 Finger Wheel Diameter 55" (1,4m) Teeth per wheel 40 Finger Wheel Tine Diameter 0,28" (7mm) Finger Wheel Diameter (Optional) 60" (1,52m) Teeth per wheel 40 Finger Wheel Tine Diameter 0,3" (7,5mm) Finger Wheel Hub Bearing Type Tapered roller-greaseable Finger Wheel Spacing (center to center) 30,8" (780mm) Operating Weight lbs-Kg (with wheels 55") 6760 lbs - 3070 kg Operating Weight lbs-Kg (with wheels 60") 6960 lbs - 3160 kg Transport Wheel size 205/75-15" Minimum Tractor Horsepower Required 40 KW - 55 HP Safety Tow Chain std Overall Length-Transport 38' 3" - 11,65 m Overall Transport Width 8' 4" - 2,55 m Maximum Working Width 37' 5" - 11,4 m Minimum Windrow Width 3' - 0,9m Maximum Windrow Width 6' - 1,8m Transport Height (with wheels 60") 6,39' - 1,95 m Transport Height (with wheels 55") 6' - 1,85 m
