BAUMALIGHT CXC542-HX530/D000013

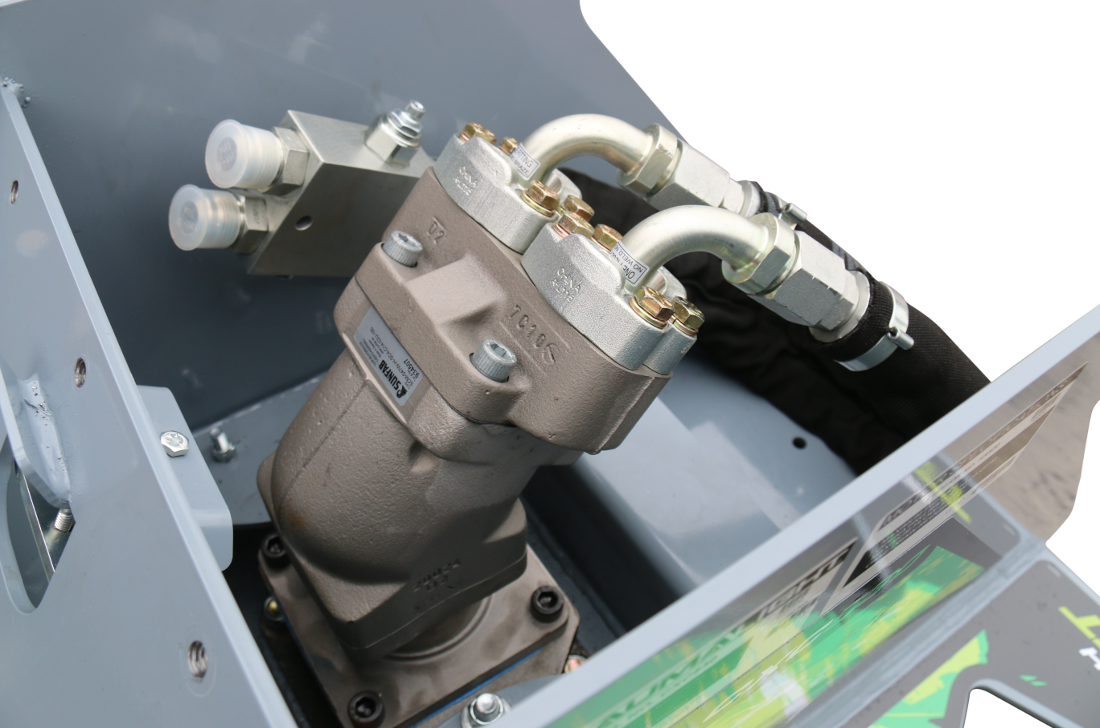

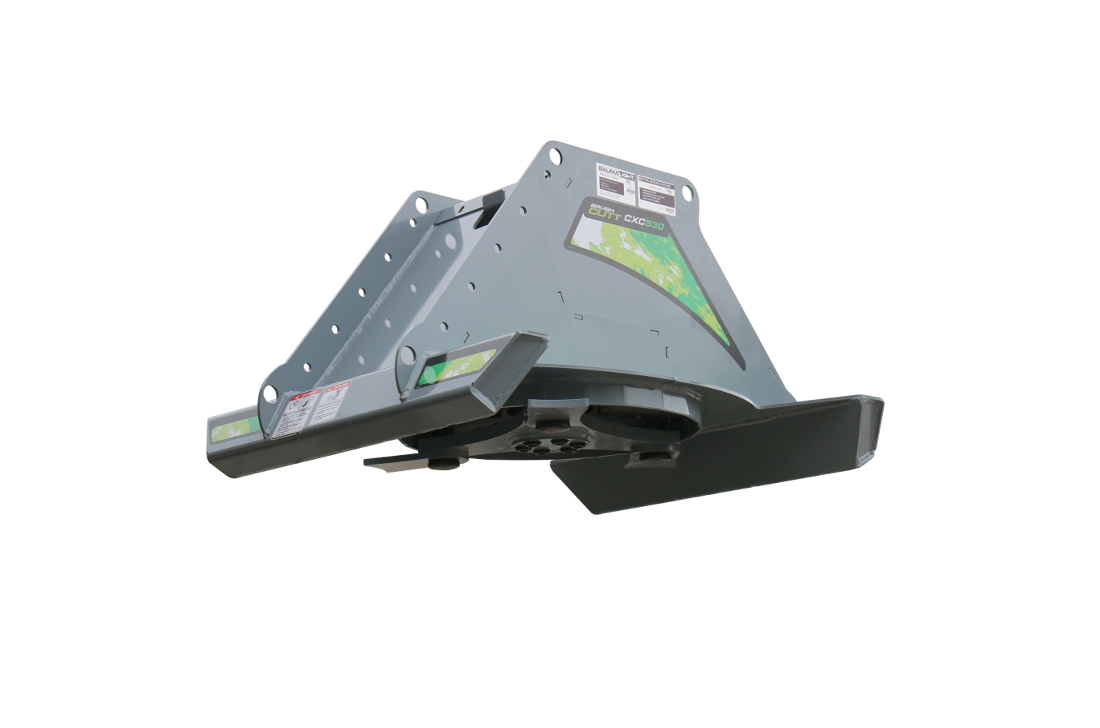

The 42" Industrial excavator mounted rotary cutter CXC542 model is offered for mid-range excavators. Built much like the CXC550, the same bearing support is used with only the frame and rotor smaller for less weight to go on smaller excavators. We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator. Model No. CXC530 CXC542 CXC550 Baumalight Connection Code A02 A02 A03 Available Motor Options HX508, HX510, HX530 HX530, HX550, HX570 HX550, HX570, HX590 Recommended GPM Check Motor Options Chart Check Motor Options Chart Check Motor Options Chart Maximum Brush Size 3.5" 5" 6" Discharge Protection Open Front and Back Open Front and Back Open Front and Back Path Width 40" 50" 67" Cutting Width 30" 42" 50" Low Cutting Height 2.5" 2.5" 2.5" Number of Blades 3 3 3 Slashes per Second 80 80 90 Attachment Type Bolt-On Bolt-On Bolt-On Maximum HP Check Flow & PSI on Carrier Check Flow & PSI on Carrier Check Flow & PSI on Carrier Case Drain Critical Critical Critical Minimum Tracked Excavator Ton 2 ton 3 ton 8 ton Minimum Wheeled Excavator Ton 3 ton 4.5 ton 10 ton Maximum Tracked Excavator Ton 10 ton 15 ton 20 ton Maximum Wheeled Excavator Ton 11 ton 17 ton 24 ton Deck Structure 1/4" AR400 steel 1/4" AR400 steel 3/8" AR400 steel Unit Weight 550 lbs 640 lbs 1,380 lbs
