BAUMALIGHT 3P34

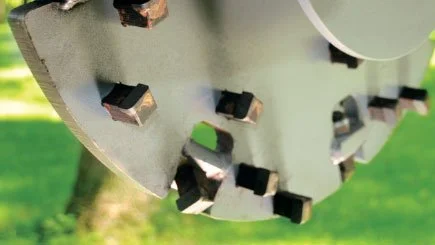

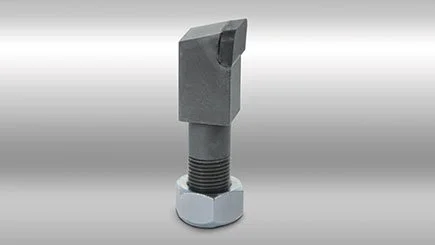

The 3P34 PTO stump grinder is designed for tractors equipped with a 50–80 horse power motor allowing you to grind into stumps with a 34" Rotor carrying 54 replaceable carbide teeth. The rugged gear box takes up to 80 HP and develops 803 ft/lbs of stump destroying torque. Designed for Cat 2 3PH and 540 PTO this versatile stump grinder has a cutting depth of 25" above ground and 14" below ground. With direct drive from the engine, all the way through the heavy duty gear box to the teeth, a stump grinder on the PTO of a tractor is the most efficient way to use a stump grinder for lawn care or fence row clearing. Model No. 1P24 3P24 3P34 3P40 Recommended HP Size 20-45 25-55 45-80 60-120 Maximum Engine HP 50 58 85 125 Maximum PTO HP 40 50 75 115 Transmission Hydrostatic only Any Any Any Hydraulic GPM -- 5–20 5–20 5–20 Rotor Size 24" 24" 34" 34" Number of Teeth 34 34 54 54 Tooth Part number S1000 S1000 S1000 S1000 Tooth Construction Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Cutting Wheel Speed 540 RPM 810 RPM 810 RPM 1000 RPM Cutting Height - Above Ground 10" 18" 25" 25" Cutting Depth - Below Ground 6" 8" 14" 14" Maximum Cutting Depth - Per Pass 5" 6" 9" 9" Maximum Horizontal Cut 22" 22" 32" 32" Swing Arc 0° 65° 65° 65° Hub Torque 803 Ft.-Lbs. 803 Ft.-Lbs. 803 Ft.-Lbs. 1050 Ft.-Lbs. Over Torque Protection Slip clutch Slip clutch Slip clutch Slip clutch Hitch Cat I Cat I or II Cat II Cat II Quick hitch compatibility Yes No No No No. of Remotes Required - Hydraulic 0 1 or 2 1 or 2 1 or 2 Requires 12 Volt DC No No No No Input Speed 540 540 540 1000 Unit Weight (Shipping) Lbs. 350 920 1231 1280 Width (Shipping) 48" 42" 48" 48" Length (Shipping) 48" 49" 54" 54"
